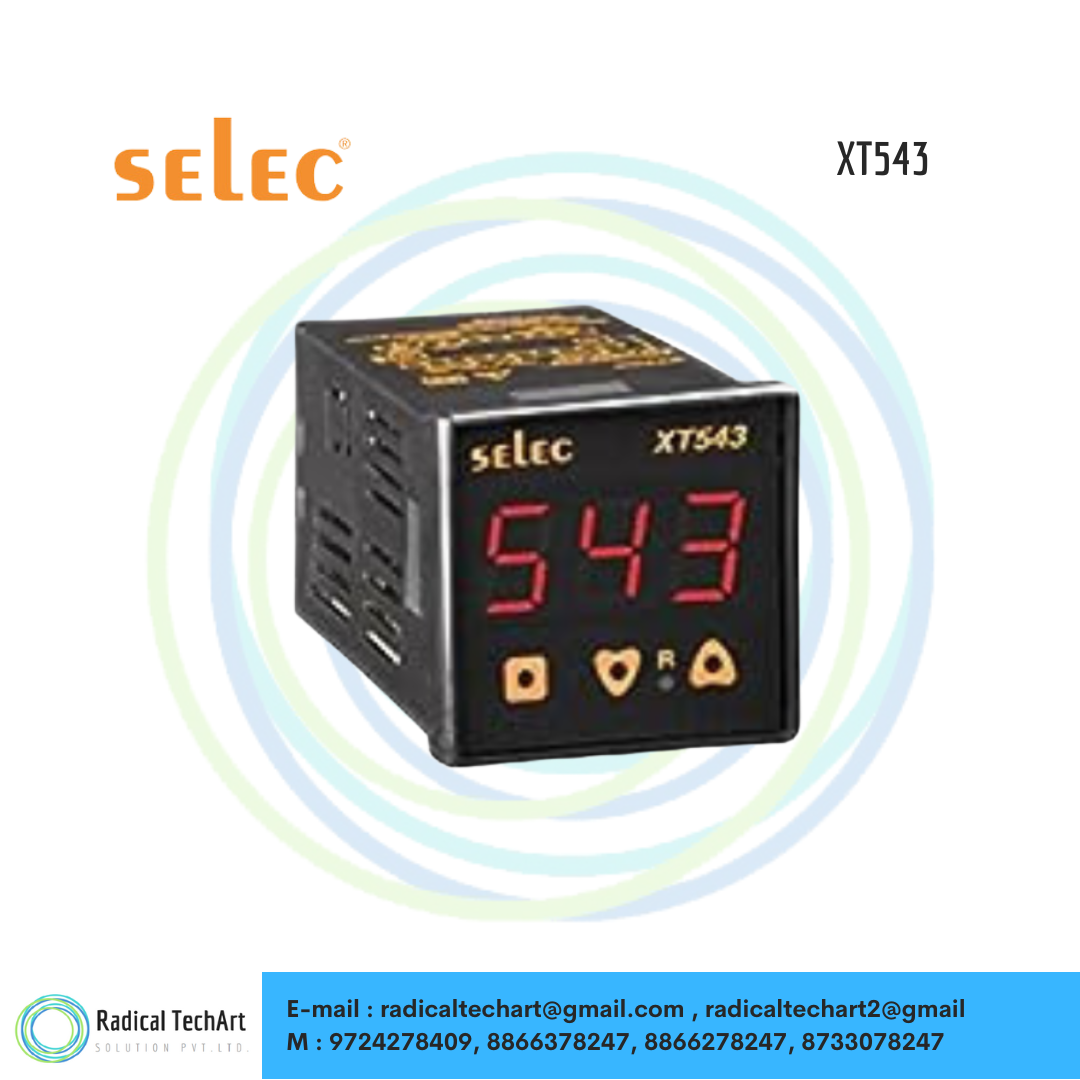

XT543 Multifunction Programmable Timer
₹1,200.00 ₹1,440.00
Product Details
SPECIFICATION:
- DISPLAY 3 digit, height 0.5".
- SET POINTS Single set point.
- DELAY MODES On delay, Interval, Cyclic on first & Cyclic off first (Configurable by keys).
- SUPPLY VOLTAGE 90 to 270 VAC/DC @ 50 or 60Hz.
- TIME RANGES 9.99, 99.9, 999 sec, 9:59 min:sec, 99.9, 999 min, 9:59 hr:min, 99.9, 999 hr. (Configurable y b keys). TIME SETTING B key y pad.
- ACUAY CRC ±0.5% or 50msec.whichever is greater.
- STATR INPUT U Gate / Pulse (Programmable)
- RESET INPUT U 1) Front panel reset (for On delay / Interval only). 2) Remote reset. 3) On power interruption. RESET TIME Less than 100 msec.
- COUNTING DIRECTION D n ow .
- LED INDICATION Relay status. OU PT U T 2 /O. C
- RELAY AR TING 5A@230VAC / 24VDC.

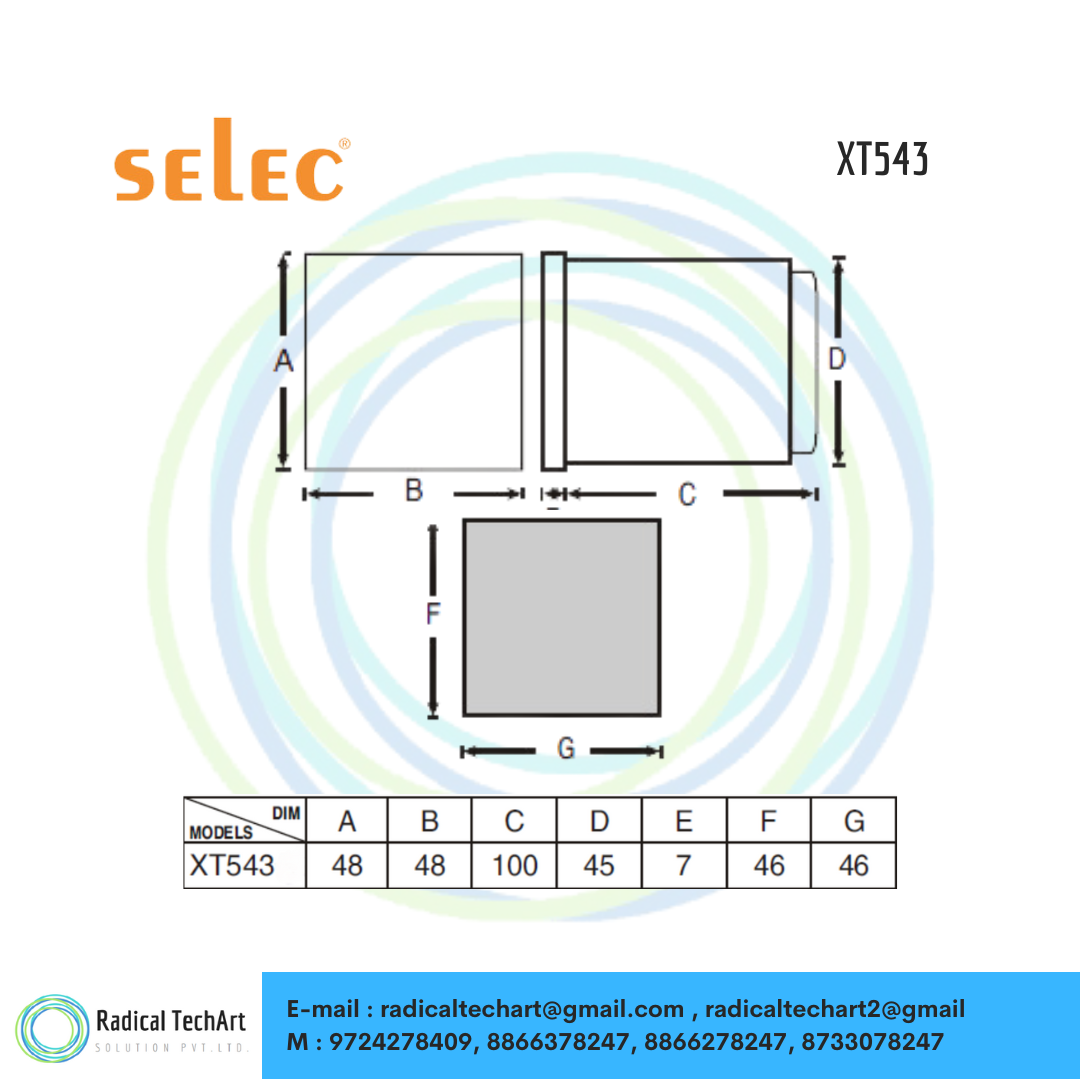

- MOUNTING Panel mounting.
- CONFIGURATION LOCK via rear terminals.
- HOUSING AB S.
- TEMPERATURE Operating: 0 to 50 C. Storage: -5 to 55 C
- HUMIDITY 95%RH.
- WEIGHT XT543: 160 gram
