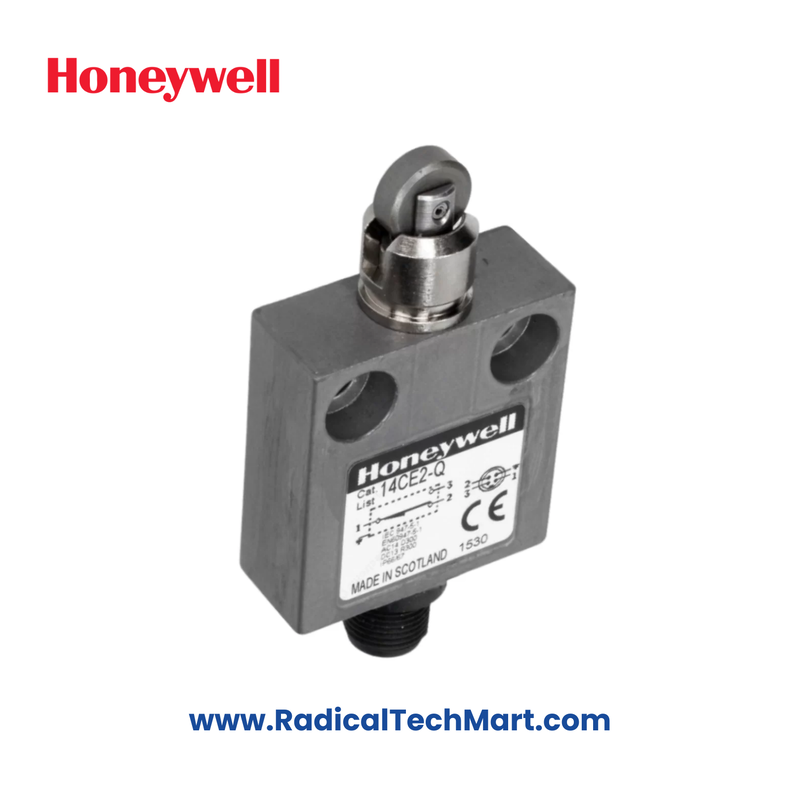

Honeywell 14CE2-Q Limit Switch | SPDT Snap Action IP67

✅ Product Summary:
The Honeywell 14CE2-Q is a heavy-duty SPDT snap action limit switch with IP65 to IP68 sealing, suitable for rugged and wet environments. Built to perform with long mechanical life and multiple connection options, it ensures high reliability in industrial automation systems.

✅ Key Features:

• SPDT snap action contacts (1NO/1NC) – Form C

• Sealing: IP65, IP66, IP67, IP68 & NEMA rated

• Cable: 4-core PVC sheathed cable (4x0.75mm²)

• Connectors: M12 (DC), ½" x 20 thread (AC)

• Long mechanical life: Up to 10 million cycles

• Operating temp: -40°C to 70°C (with option)

• Rated insulation voltage: 250V

• Thermal current: 1A, 3A, or 5A (model dependent)

• Short circuit protected via quick blow fuse

• High impulse withstand voltage of 1.5 kV



✅ Applications:

• Industrial machine automation

• Conveying & packaging lines

• Heavy-duty position sensing

• Material handling equipment

• Outdoor and wet environments



✅ Product Benefits:

• Durable for long-life industrial operations

• Versatile mounting and wiring options

• Resistant to dust, water, and impact

• Flexible connectivity for AC and DC setups

• Ensures safety and repeatable performance


🔹 Frequently Asked Questions (FAQ)

Q1. What is the main advantage of using a Honeywell 14CE2-Q switch?
A1. It offers long mechanical life and rugged environmental protection (IP68/NEMA), making it ideal for demanding applications.

Q2. Can this limit switch be used in outdoor environments?
A2. Yes, its IP65–IP68 and NEMA 6/6P ratings make it fully suited for outdoor or washdown conditions.

Q3. What type of contact mechanism does it use?
A3. It features SPDT snap action contacts with both normally open and normally closed outputs.
