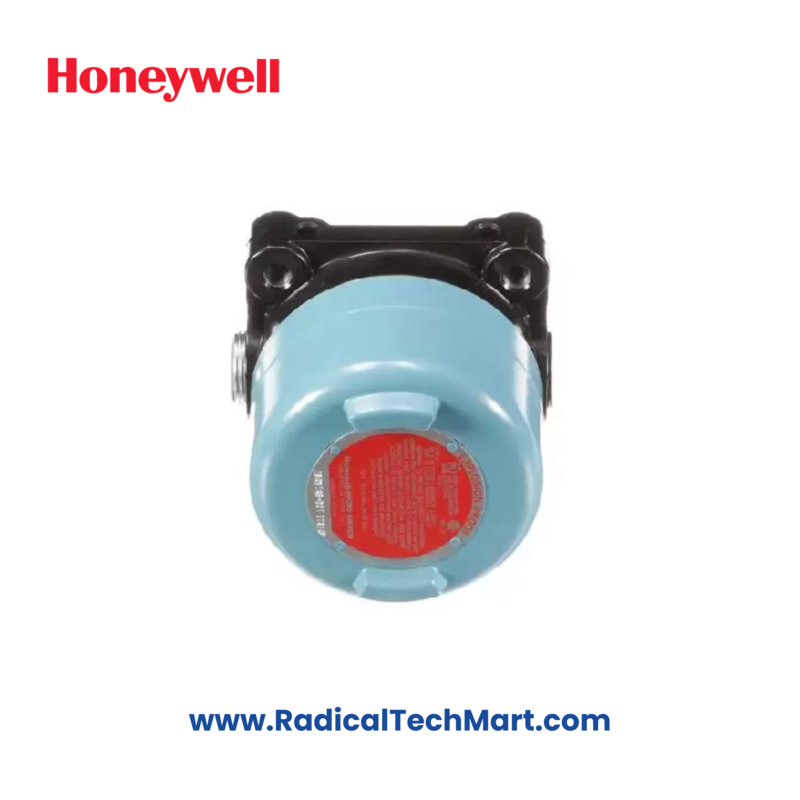

16CX12B-D01 Honeywell Limit Switch
₹1.00
Product Details
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model | 16CX12B-D01 |
| Housing material | aluminum with electrostatic epoxy coating or corrosion resistant bronze |
| Termination | 3/4 x 14 NPT, M25 x 1,5 mm conduit |
| Sealing | NEMA 1, 3, 4, 4X, 6, 6P, and 13; IP66 |
| Hazardous area designations | NEMA 7: Class I, Div.1 & Div. 2, Groups B (14CX, 16CX, 24CX, 26CX, 36CX only), C, and D; NEMA 9: Class II, Div.1 & Div. 2, Groups E, F, and G ATEX/IEC Ex, INMETRO (Gas) II 2 G; Exd IIC T6 ATEX/IEC Ex, INMETRO (Dust) II 2 D; Exd tD A21 T85°C |
| Operating temperature | -25 °C to 85 °C [-13 °F to 185 °F] |
| Agency approvals | UL Listed, file #E14274 CSA Certified, file #LR57324 ATEX certificate DEKRA 22ATEX0048X IEC Ex certificate DEK 22.0033X INMETRO certiticate TUV 14.0553 |
| Actuators | side rotary (choice of levers), side rotary (with flat shaft), plunger actuator |
