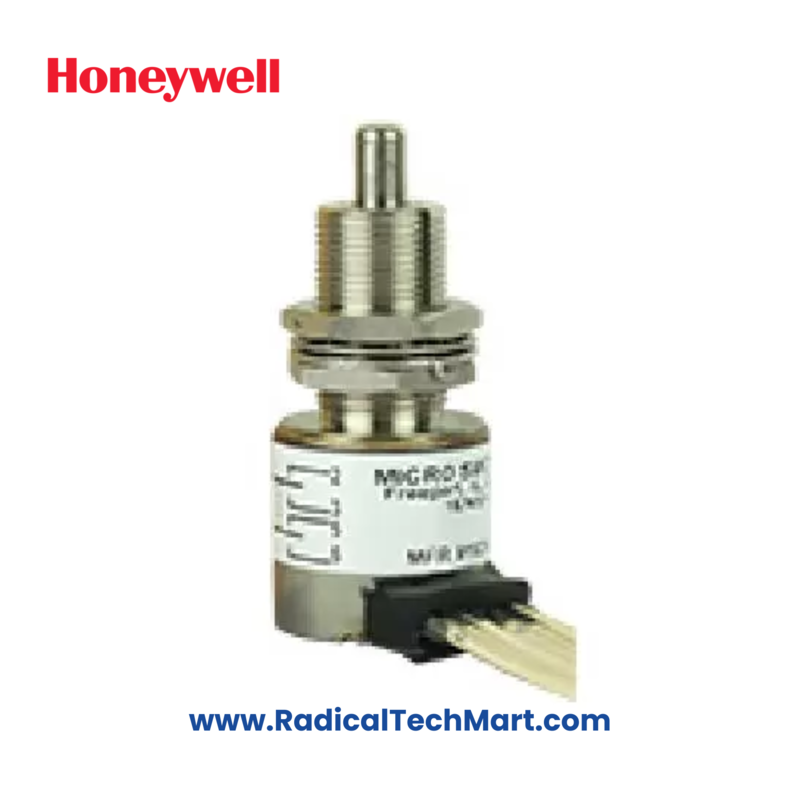

1EN51-S Honeywell Limit Switch
₹1.00
Product Details
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model No. | 1EN51-S |
| Contact material | Silver alloy, gold plated, gold bifurcated |
| Mechanical endurance | 25,000 cycles min |
| Electrical rating | Up to 15 A @ 28 Vdc |
| Dielectric strength (initial) | 1000 V RMS; 500 μA max. leakage |
| Insulation resistance (initial) | 500 Vdc; 1000 Megohms min. |
| Environmental sealing | Symbol 4, resilient seal per MIL-PRF-8805 |
| Housing Height mm [in] | 24,9 [0.980] |
| Actuator | PIN PLUNGER |
