Product Details

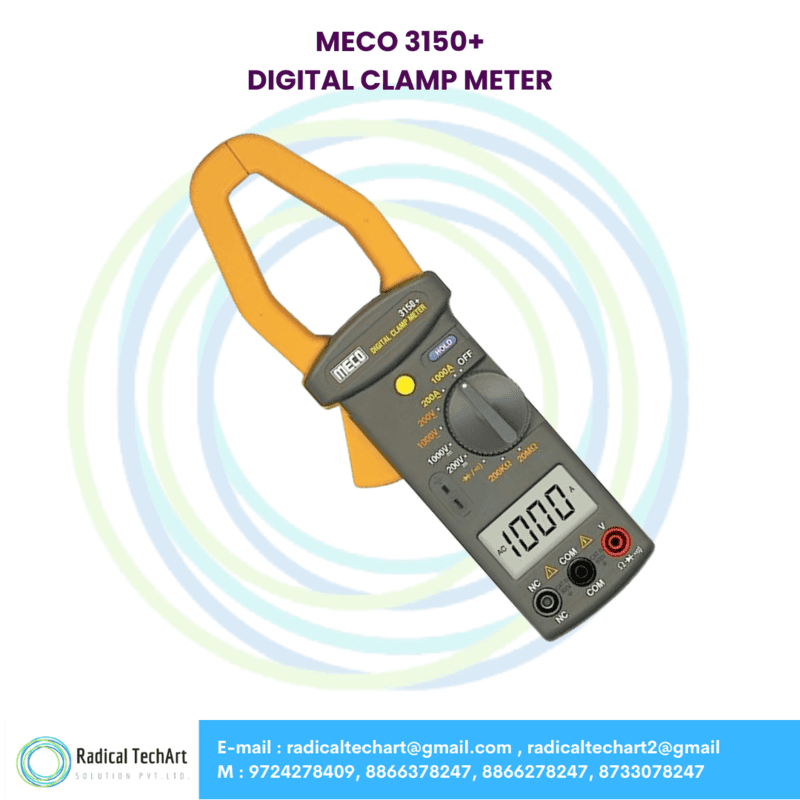

1000A AC
Manual Ranging, 3½ Digit, 2000 Counts, Data Hold, APO
Ranges AC Current : 200A, 1000A (40Hz-500Hz)
Accuracy : ±(3%rdg+4dgt) on 200A ±(2%rdg+4dgt) on 1000A
Overload : 1000A AC max. for 1 min.
AC Voltage : 200V, 1000V (40-500Hz)
Accuracy : (1.0%rdg+8dgt) on 200V [1.5%rdg+8dgt) on 1000V
DC Voltage : 200V, 1000V
Accuracy : ±(0.8%rdg+4dgt) on 200V ±(1%rdg+4dgt) on 1000V
Resistance : 200ΚΩ, 20ΜΩ
Accuracy : ±[1.2%rdg+4dgt) on 200KΩ ±(2.5%rdg+4dgt) on 20MΩ
Over Volt Protection : 600V DC or AC RMS
Audible Cont. : 40Ω (approx.)
Over Volt Protection : 600V DC or AC RMS
Diode Test : 1.0±0.6mA (approx.)
Over Volt Protection : 600V DC or AC RMS
Power : Two 1.5V 'AAA' Battery
Battery Life : 200 Hours Typical
Low Battery : "" is indicated
Dimension : 247 x 90 x 40 mm (approx.)
Weight : 380gms Including Battery (approx.)
Accessories : One Pair of Test Leads, Instruction Manual, Carrying Case, 1.5V Battery (installed)
Jaw Opening : Cable Dia. 43mm (max.) Bus Bar 16mm x 65mm
