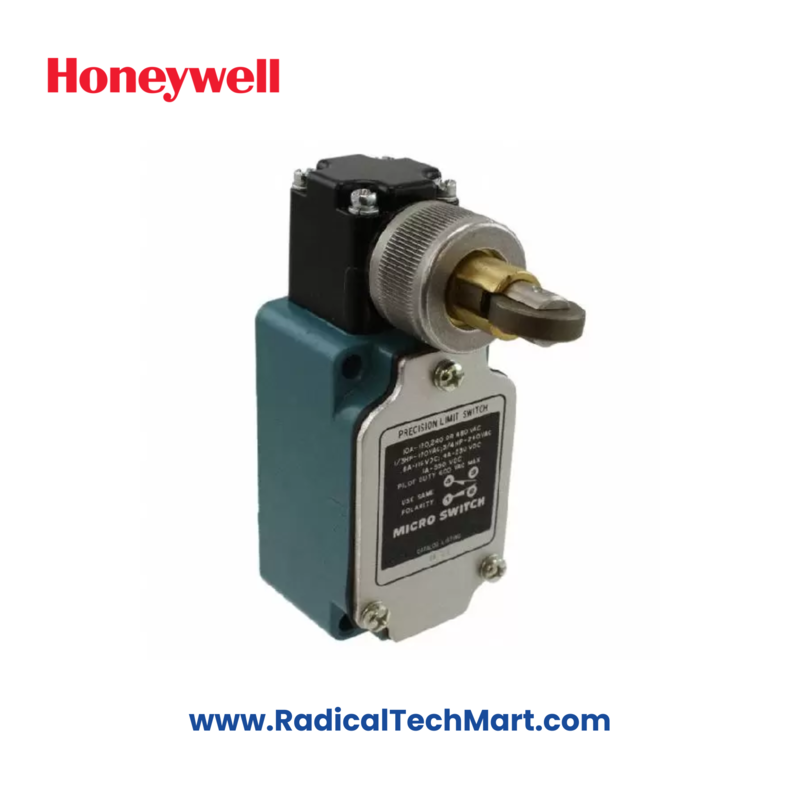

3LS1 Honeywell Limit Switch
₹1.00
Product Details
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model no. | 3LS1 |
| Acutators | side rotary, side rotary (maintained) top pin plunger, top roller plunger, wobble coil spring, wobble aluminum rod, wobble cat whisker, wobble sst coil spring |
| Circuitry | single pole double throw (SPDT) double break |
| Electrical | 10 A |
| Housing material | compact: epoxy coated zinc die cast plug-in: epoxy coated aluminum die cast |
| Conduit | 0.5 – 14 NPT |
| Housing seal rating | NEMA 1,3,4, 6 and 13 |
| Operating temperature | standard: -29 °C to 71 °C [-20 °F to 160 °F] high temp.: -29 °C to 120 °C [-20 °F to 248 °F] |
| Agency certifications | Compact with –L suffix UL file 12252, CSA file 57325 |
