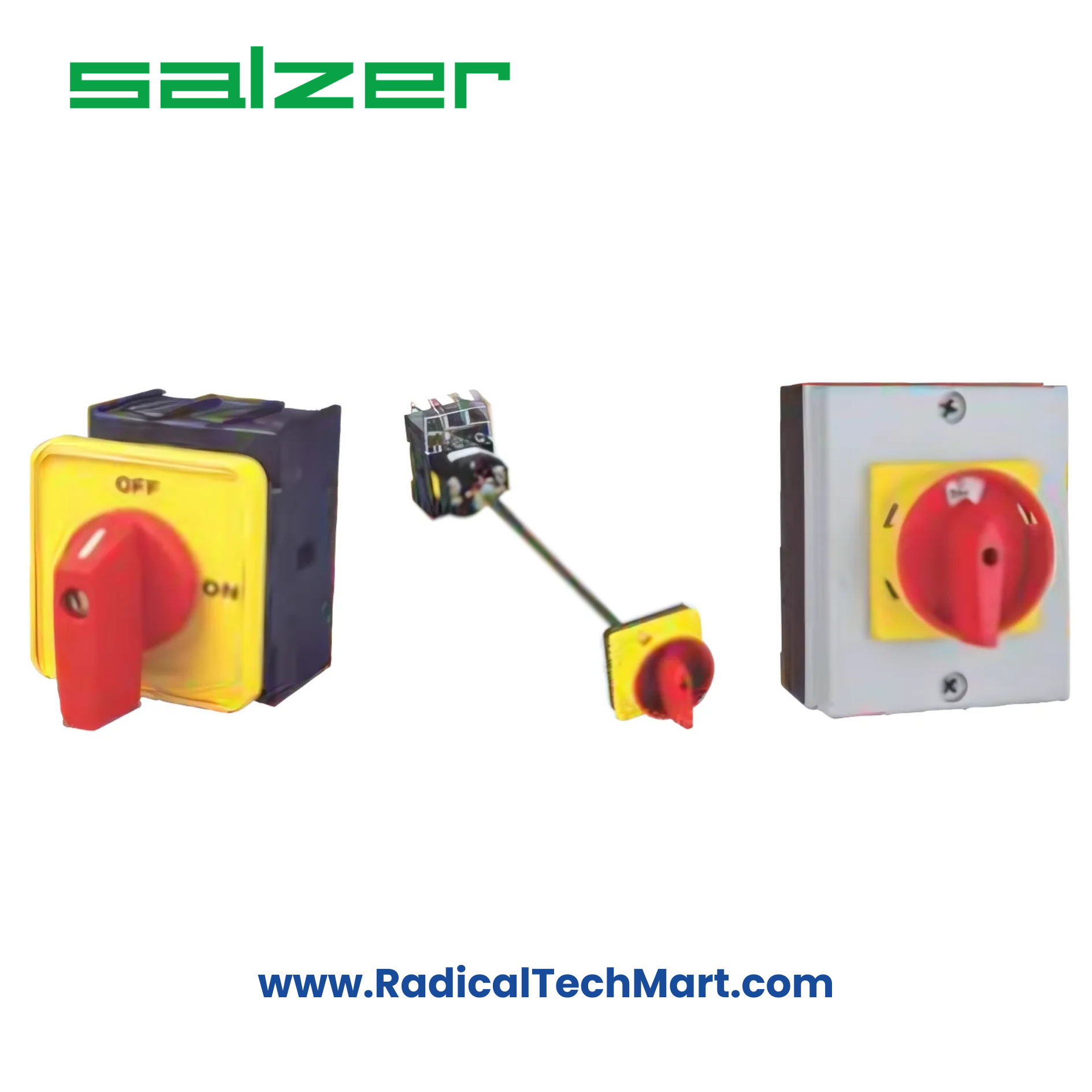

4 Pole ON - OFF Load Break Switches
₹218.00 - ₹8,866.00
Product Details
- Type: 4 Pole ON-OFF Load Break Switch
- Poles: 4 poles for balanced load breaking in four-phase or three-phase electrical systems with neutral
- Voltage Rating: Typically rated for 415V or 690V AC (depending on the model)
- Current Rating: Available in various ratings ranging from 10A to 630A or higher, based on model selection
- Operation: Manual ON/OFF switching with reliable load-breaking capacity
- Enclosure: IP65-rated (dust-tight and water-resistant), ensuring protection in harsh industrial conditions
- Material: High-strength metal housing for maximum durability and electrical safety
- Mounting Style: Suitable for panel or wall mounting with secure terminal connections
- Temperature Range: Typically operates from -20°C to +70°C, suitable for extreme environmental conditions
- Compliance: Conforms to international standards, such as IEC 60947-3, for safe electrical switching
- Application: Ideal for use in motor control centers, distribution panels, and electrical substations
- Safety Features: Arc suppression system for safe switching and minimal arcing during operation
