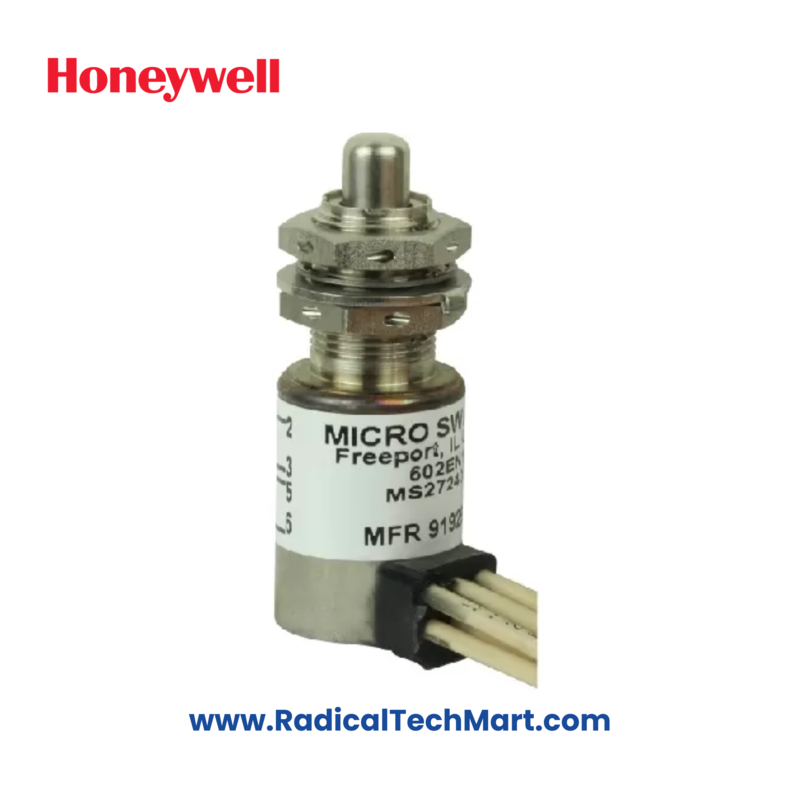

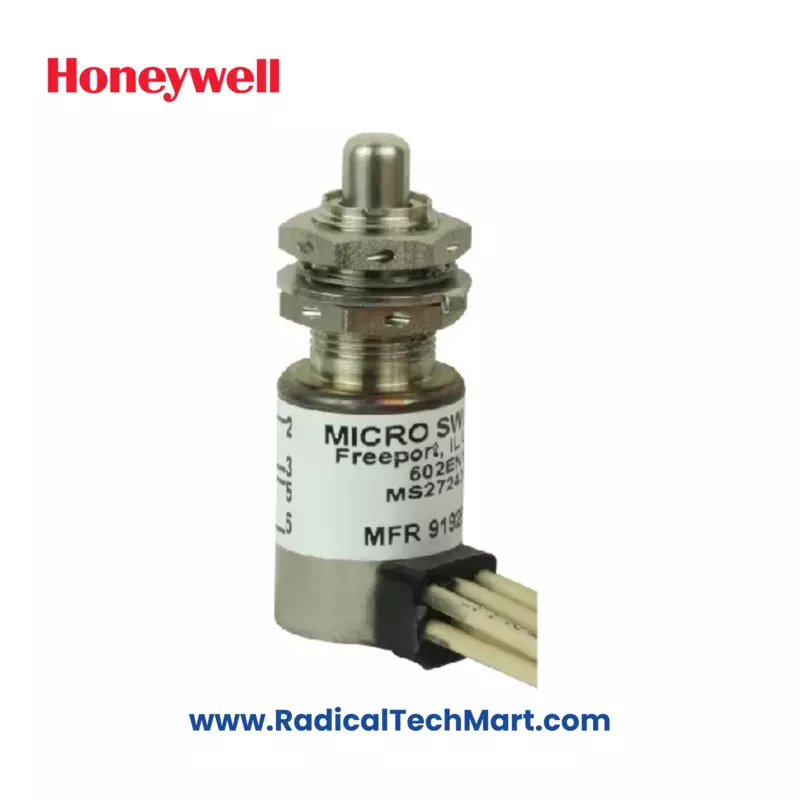

602EN1-6 Honeywell Limit Switch
₹1.00
Product Details
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model No. | 602EN1-6 |
| Operating Force | 26,7 to 53,4 [6 to 12] N |
| Release Force | 17,8 [4] N |
| Free Position | 35,0 [1.38]mm |
| Pretravel | 1,02 [0.040] mm |
| Overtravel | 6,35 [0.250]min mm |
| Differential Travel | 0,51 [0.020] max mm |
| Bushing Thread Size | 0.625-24 UNEF |
| Housing Height mm [in] | 24,9 [0.98] |
| Actuator | PIN PLUNGER |
| Electrical endurance | 25,000 cycles min. @ rated load |
| Electrical rating | Up to 15 A @ 28 Vdc |
| Dielectric strength (initial) | 1000 V RMS; 500 μA max. leakage |
