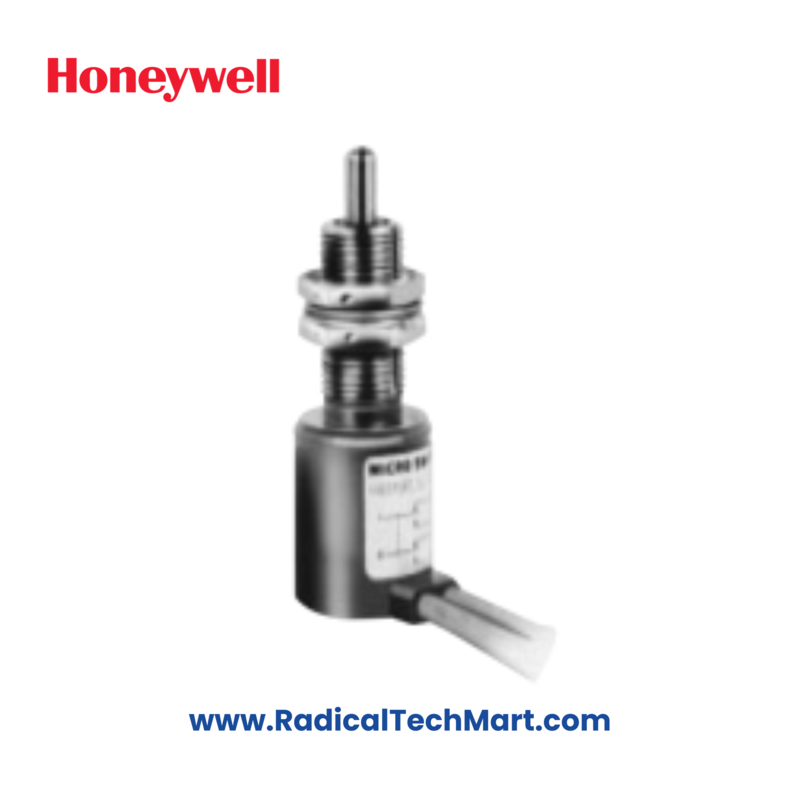

602EN142 Honeywell Limit Switch
₹1.00
Product Details
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model No. | 602EN142 |
| Housing & bushing material | 300 Series stainless stee |
| Contact material | Silver alloy, gold plated, gold bifurcated |
| Mechanical endurance | 25,000 cycles min. |
| Circuitry | 1PST (one-pole single throw) to 6PDT (six-pole double throw); reference |
| Electrical rating | Up to 15 A @ 28 Vdc; reference Table |
| Dielectric strength (initial) | 1000 V RMS; 500 μA max. leakage |
| Insulation resistance (initial) | 500 Vdc; 1000 Megohms min |
| Environmental sealing | Symbol 4, resilient seal per MIL-PRF-8805 |
| Temperature range (std.) | -54 °C to 85 °C [-65 °F to 185 °F] |
| Shock | Symbol M (100 g) per MIL-PRF-8805 |
| Vibration | Symbol 1, 10 g peak (10 Hz to 500 Hz) |
| Standards | Design conforms to MIL-PRF-8805 |
