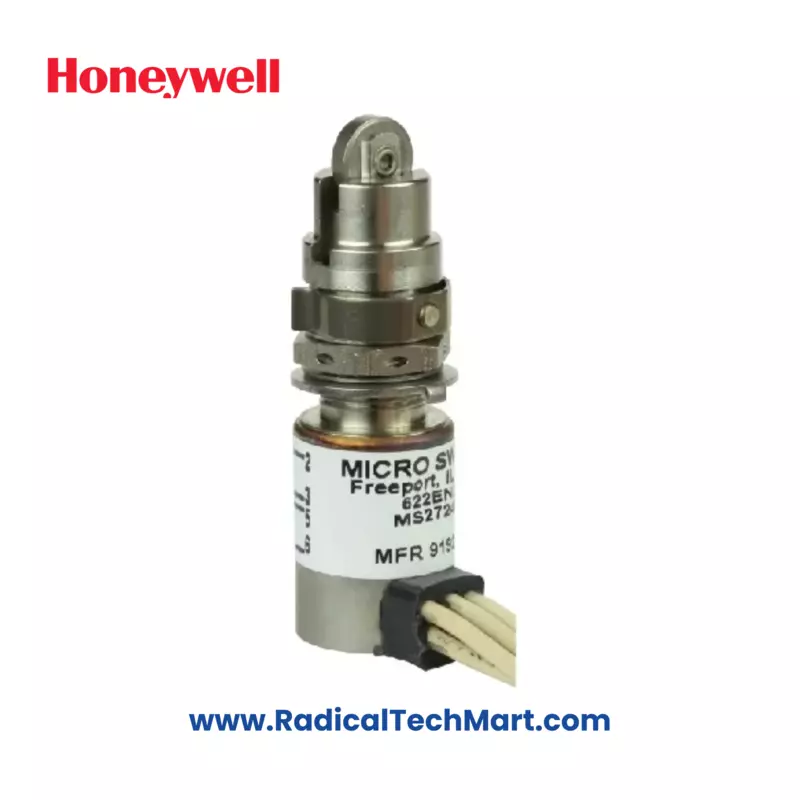

622EN222-6 Honeywell Limit Switch
₹1.00
Product Details
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model No. | 622EN222-6 |
| Operating Force | 26,7 to 53,4 [6 to 12] N |
| Release Force | 17,8 [4] N |
| Free Position | 32,9 [1.30] mm |
| Pretravel | 1,02 [0.040] mm |
| Overtravel | 3,18 [0.125]min mm |
| Differential Travel | 0,51[0.020] max mm |
| Bushing Thread Size | 0.469-32 UNS |
| Housing Height mm [in] | 25,4[1.0] |
| Actuator | ROLLER PLUNGER |
| Electrical endurance | 25,000 cycles min. @ rated load |
| Electrical rating | Up to 15 A @ 28 Vdc |
| Dielectric strength (initial) | 1000 V RMS; 500 μA max. leakage |
