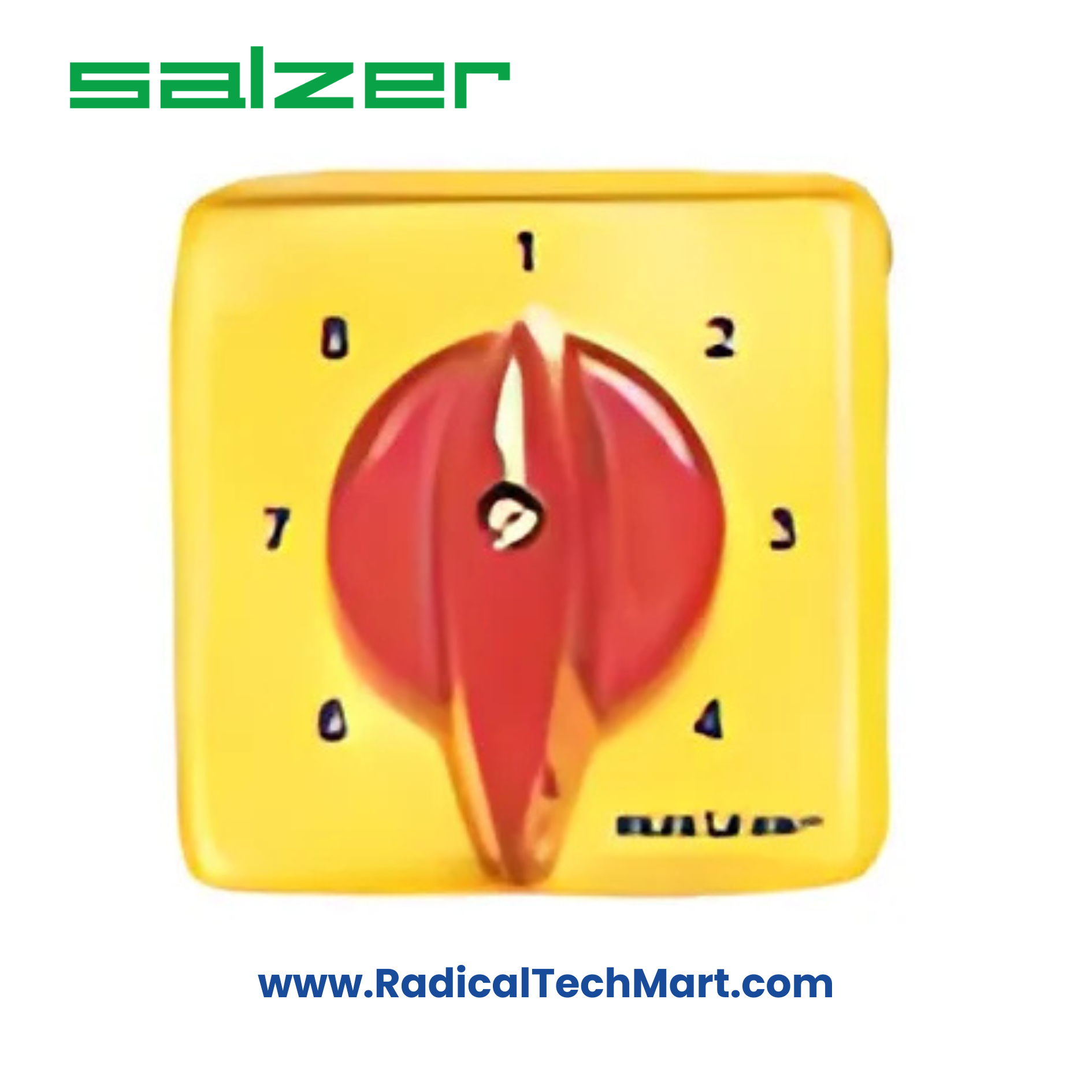

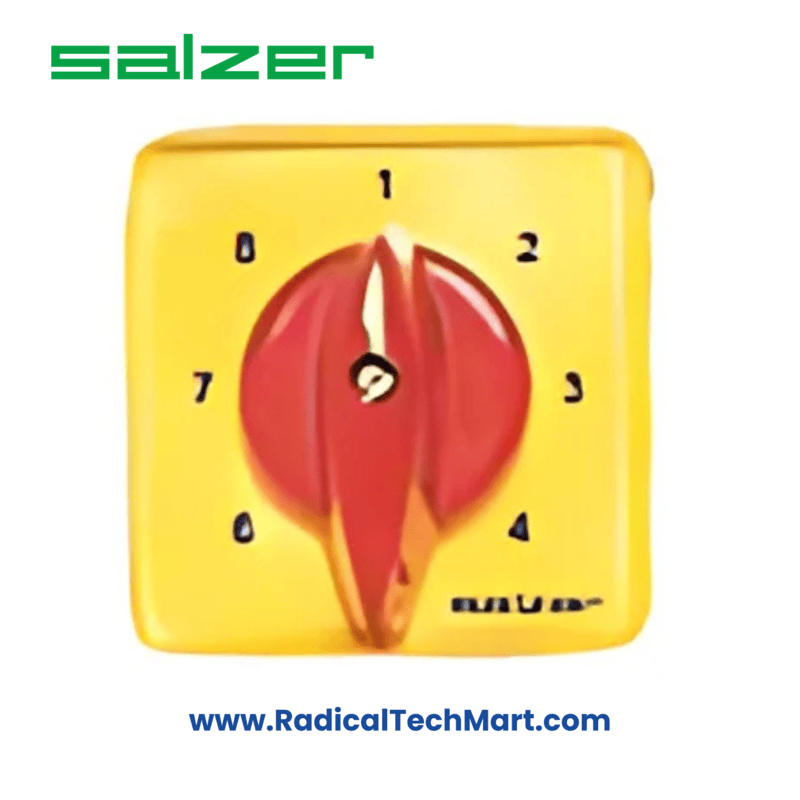

8 Way Multi Step Switches without OFF

Type: Rotary switch with 8 selectable positions, no OFF position

Operation: Multi-step control for continuous industrial applications

Current Rating: Options typically range from 10A to 32A (model-specific)

Voltage Rating: Suitable for 240V to 415V AC systems

Switching Angle: Generally 45° or 60° per step for smooth operation

Positions: 8 fixed operational stages

Mounting: Panel mount design, compatible with standard electrical enclosures

Protection Class: IP40 or IP65 (model-dependent) for protection against dust and splashes

Material: Rugged plastic or metal body designed for long-term use in industrial environments

Operating Temperature: -20°C to +60°C

Applications: Industrial machines, automation panels, HVAC systems, power control boards, and systems requiring multi-position selection

Standards: Complies with IEC, UL safety and performance certifications

Durability: Long mechanical life, resistant to wear and tear in high-usage environments
