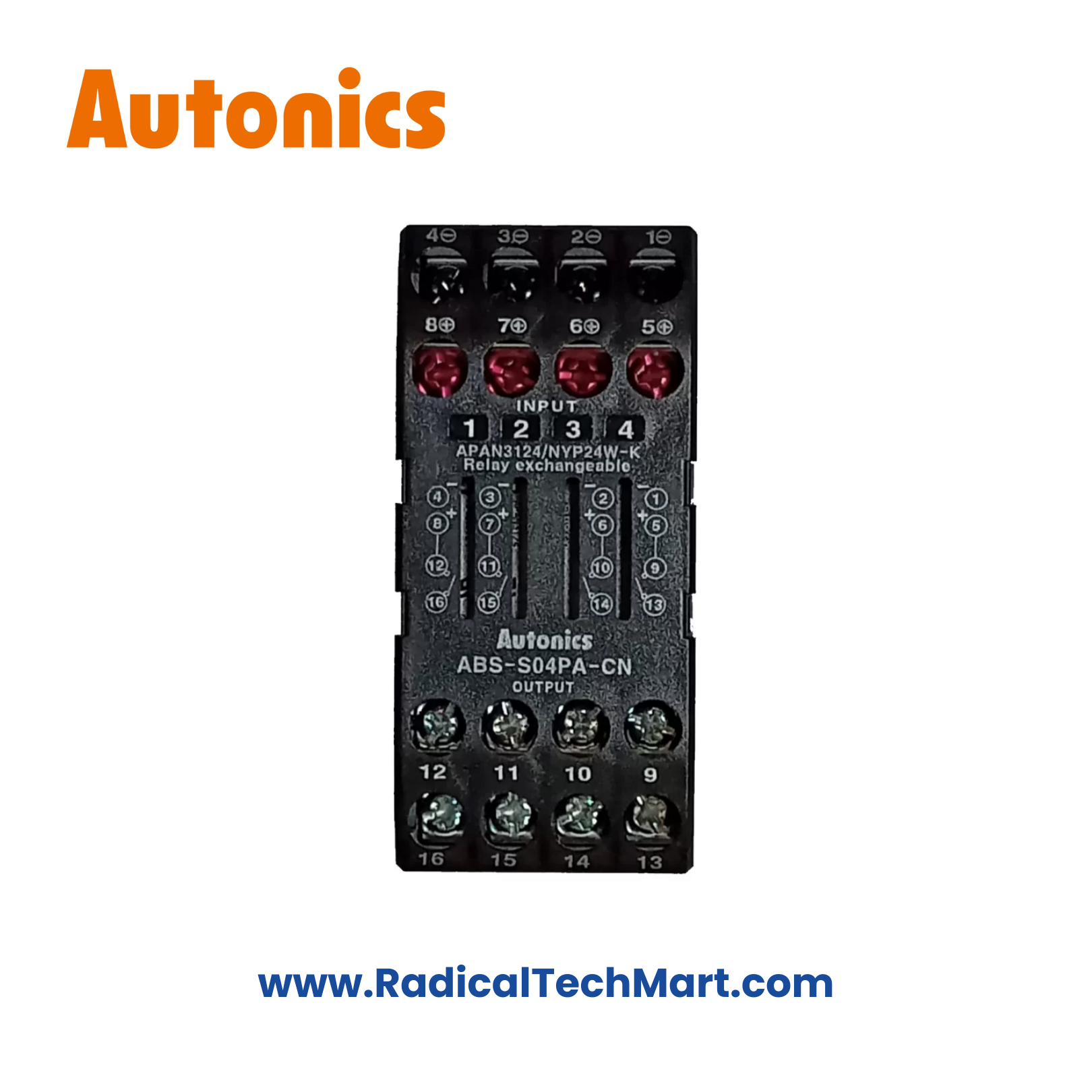

ABS-S04PA-CN Autonics Relay Terminal Block
Autonics ABS-S04PA-CN Relay Terminal Block (4-Point, Screw Type, Panasonic Relay)
The Autonics ABS-S04PA-CN is a 4-point relay terminal block with Panasonic (Matsushita) relay and screw terminals.
Designed for PLC I/O isolation and reliable signal switching in industrial automation panels.
The Autonics ABS-S04PA-CN is a compact 4-point relay terminal block designed for interfacing PLC outputs with field devices. It uses high-quality Panasonic (Matsushita) power relays, offering electrical isolation, stable switching, and long service life.
With screw-type terminals and DIN-rail mounting, this relay terminal block is ideal for control panels, OEM machinery, and industrial automation systems where safe and reliable signal switching is required.
Key Features
4-point relay terminal block
High-reliability Panasonic (Matsushita) relay
Screw terminal type (7.62 mm pitch)
DIN rail or panel mounting
Supports NPN / PNP logic models
Clear LED operation indicators
Suitable for PLC output isolation and load driving
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Relay Terminal Block |
| Model | ABS-S04PA-CN |
| Number of Relay Points | 4 |
| Relay Type | PA – Panasonic (APAN3124) |
| Contact Configuration | 1a (SPST-NO) |
| Rated Load | 250 VAC, 3 A / 30 VDC, 3 A |
| Coil Voltage | 24 V DC |
| Current Consumption | ≤ 8 mA per relay |
| Terminal Type | Screw |
| Terminal Pitch | 7.62 mm |
| Input Logic | CN – No COM |
| Mounting | DIN Rail / Panel Mount |
| Indicator | Blue operation LED |
| Operating Temperature | −15 to +55 °C |
Applications
PLC output isolation
Industrial automation panels
Machine control panels
OEM equipment
Signal amplification & load switching
Relay interface for sensors and controllers
What’s in the Box?
Autonics ABS-S04PA-CN Relay Terminal Block
Instruction manual
Two-way ejector
Jumper bar (4-pin, 7.62 mm pitch)
FAQ
Q1. What does “PA” indicate in ABS-S04PA-CN?
PA indicates a Panasonic (Matsushita) relay used inside the module.
Q2. How many relay points are available in this model?
This model supports 4 relay outputs.
Q3. Is this suitable for PLC output interfacing?
Yes. It is specifically designed for PLC I/O isolation and load driving.
Q4. Can it be mounted on a DIN rail?
Yes. It supports 35 mm DIN rail mounting as well as panel mounting.
Q5. What type of loads can be connected?
Resistive loads up to 3 A at 250 VAC or 30 VDC.
