ASGB-02-G Autonics Signal Light

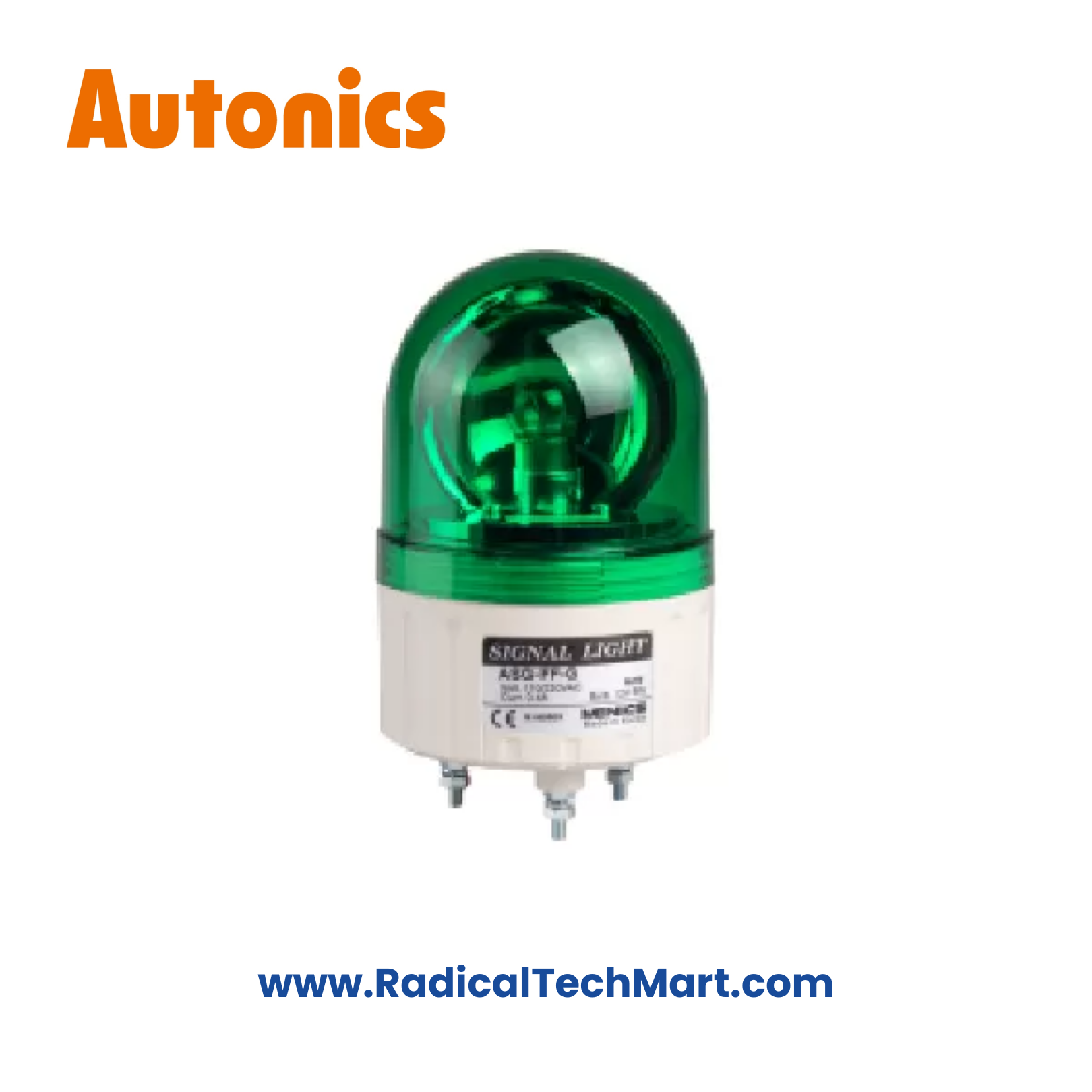

Autonics ASGB-02-G Rotating Signal Light with Buzzer (Green, Ø86 mm)
The Autonics ASGB-02-G is a Ø86 mm rotating signal light with built-in buzzer and green lens.
Used for run, normal operation, and status-OK indication in industrial machines and automation systems.
The Autonics ASGB-02-G is a compact Ø86 mm rotating signal light with integrated buzzer, designed to provide clear visual and audible indication of machine running or normal operating conditions. The green rotating beacon ensures high visibility on factory floors, while the buzzer supports attention-required notifications.
This model is widely used in automation systems, production lines, control panels, and OEM machinery for status indication.
Key Features
Ø86 mm compact industrial signal light
Green rotating beacon for run / normal status indication
Built-in buzzer for audible alert
High visibility even in large industrial areas
Stud-mount design for quick installation
AC/DC voltage options available (model-wise)
Rugged construction for industrial environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Rotating Signal Light with Buzzer |
| Model | ASGB-02-G |
| Series | ASG / ASGB |
| Lens Color | Green |
| Lens Type | Smooth |
| Light Style | Rotating with Buzzer |
| Diameter | Ø86 mm |
| Sound Level | Approx. 80 dB |
| Rotation Speed | ~130 RPM |
| Light Source | Incandescent |
| Power Supply | As per model code (AC/DC variants) |
| Mounting Type | Stud Mount |
| Application Area | Industrial indoor use |
Applications
Machine run indication
Normal operation status signaling
Industrial automation systems
Control panels & OEM machines
Production and assembly lines
Safety and operational status indication
What’s in the Box?
Autonics ASGB-02-G Signal Light
Pre-wired cable
Mounting hardware
Product leaflet
FAQ
Q1. What does “ASGB” stand for?
ASGB indicates a rotating signal light with a built-in buzzer.
Q2. What is the typical use of a green signal light?
Green is commonly used for machine run or normal operating condition indication.
Q3. Does the buzzer operate with the light?
Yes. In ASGB models, the buzzer operates simultaneously with the rotating light.
Q4. Can this be installed on machines and panels?
Yes. It is suitable for machine tops, panels, and industrial equipment.
Q5. Are different voltage options available?
Yes. Multiple AC and DC voltage variants are available depending on model selection.
