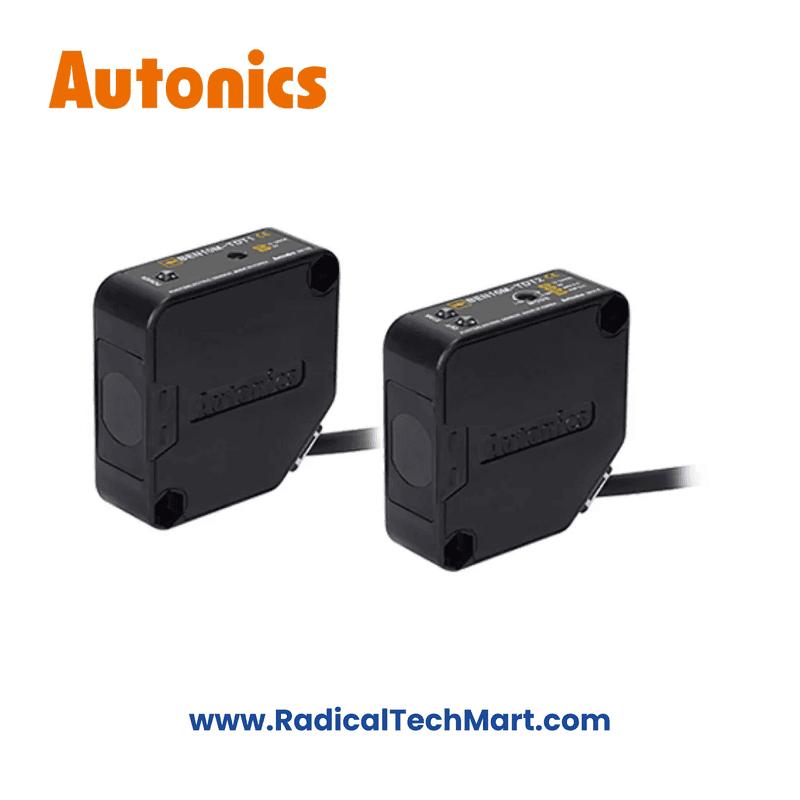

BEN10M-TDT Autonics Photoelectric Sensor
Non-returnable
₹3,531.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model Number | BEN10M-TDT |
| Sensing Type | Transmitted beam type |
| Sensing Distance | 10m |
| Sensing Target | Opaque materials of Min. Ø 16mm |
| Response time | Max. 1ms |
| Power Supply | 24-240VDC ±10% (Ripple P-P : Max.10%) |
| current Consumption | Max. 40mA |
| Light Source | Infrared LED (modulated) |
| Operation Mode | Light ON or Dark On mode selectable by switch |
| Indicator | Operation Indicator: Orange, Stable Indicator, Green (The Orange lamp on emitter of transmitted beam type is for power indicator) |
| Connection | Outgoing Cable |
| Vibration | Mechanical:- 1.5mm amplitude at frequency of 10 – 55Hz in each of X,Y,Z directions of 2 hours. |
| Shock | Mechanical:- 500m/s² (50G) in X,Y,Z directions for 3 times |
| Ambient Temperature | -20 ∼ 55°C (at non-freezing status), Storage: -25 to +70°C |
| Ambient Humidity | 35 to 85%RH , Storage:- 35 to 85%RH |
| Material | Case, ABS, Lens cover:- Acrylic, Lens:- Acrylic |
| Protection | IP50 (IEC Standard) |
| Cable | Ø 6.0mm, 4P, Length: 2m |
| Weight | Approx. 342g |
