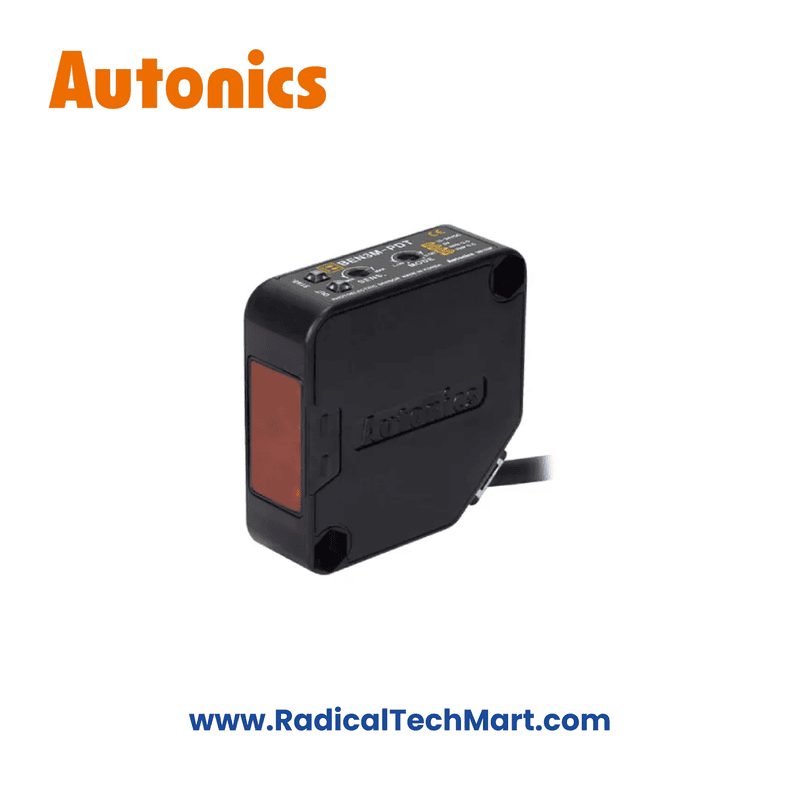

BEN3M-PDT Autonics Photoelectric Sensor
Non-returnable
₹3,219.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model Number | BEN3M-PDT |
| Sensing Type | Retroreflective type(built-in polarizing filter) |
| Sensing Distance | 3m(MS-2) |
| Sensing Target | Opaque material of min. Ø60mm |
| Light source | Red LED(660nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 50mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by switch) |
| Control output | NPN, PNP open collector simultaneous output |
| Connection type | Cable type(Ø5, 2m) |
| Environment Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment Ambient temperature | -20 to 65℃, storage: -25 to 70℃ |
| Protection structure | IP50 |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case, Case cover: Heat resistant Acrylonitrile butadiene styrene, Sensing part: Polycarbonate(with polarizing filter: polymethyl methacrylate), Bracket: Steel Plate cold commercial, Bolt: steel chromium molybdenum, Nut: steel chromium molybden |
| Accessories Individual | Reflector(MS-2) |
| Accessories Common | Adjuster driver, Fixing bracket, Bolts, Nuts |
| Weight | Approx. 200g |
