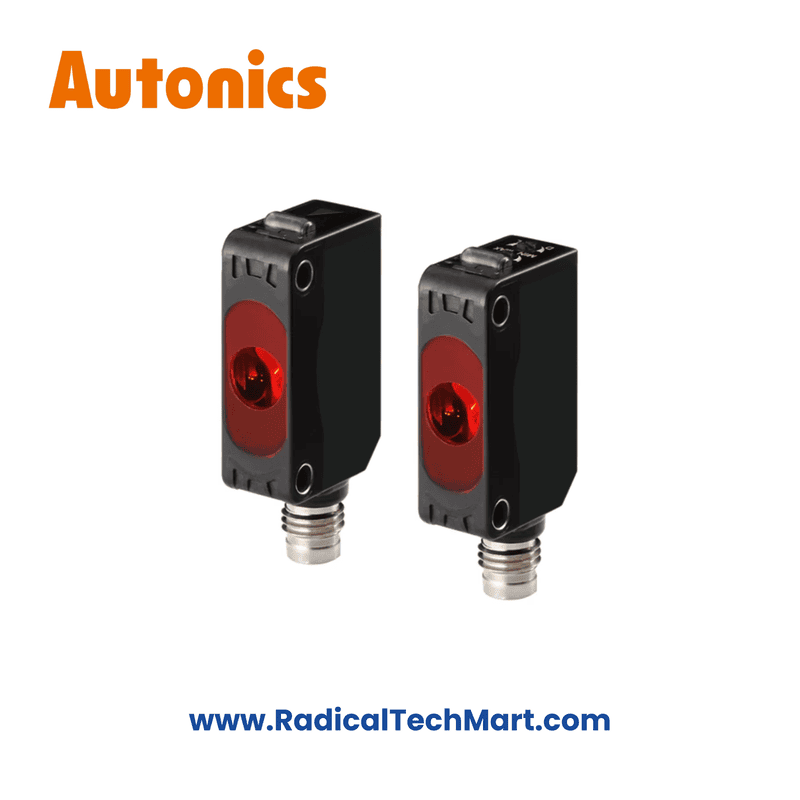

BJ10M-TDT-C Autonics Photoelectric Sensor
Non-returnable
₹4,262.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model no | BJ10M-TDT-C |
| Sensing type | Through-beam type |
| Sensing distance | 10m |
| Light source | Red LED(660nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC |
| Current consumption | Emitter/Receiver: Max. 20mA |
| Operation mode | Light ON/Dark ON(set by switch) |
| Control output | NPN open collector |
| Connection type | Connector type(M8) |
| Protection structure | IP67 |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate, Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum, Sleeve: Brass, Ni-plate |
| Accessories | Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver |
| Weight | Approx. 45g |
