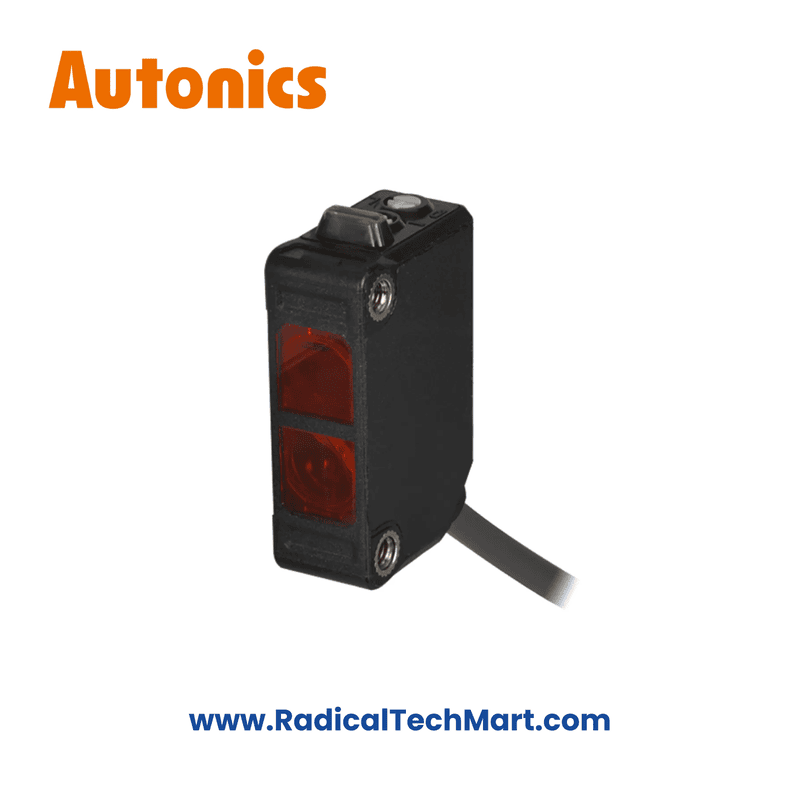

BJR3M-PDT-P Autonics Photoelectric Sensor
Non-returnable
₹9,125.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model no | BJR3M-PDT-P |
| Oil proof/oil resistant | Oil resistant type |
| Sensing type | Retroreflective type(built-in polarizing filter) |
| Sensing distance | 3m |
| Sensing target | Opaque material of min. Ø75mm |
| Light source | Red LED(660nm) |
| Response time | Max. 1ms |
| Power supply | 10-30VDC |
| Current consumption | Max. 30mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by switch) |
| Control output | PNP open collector |
| Connection type | Ø4mm, 3-wire, 2m |
| Protection structure | IP67 (IEC standard), IP67G (JEM standard) |
| Approval |  |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic |
| Weight | Approx. 115g(approx. 50g) |
