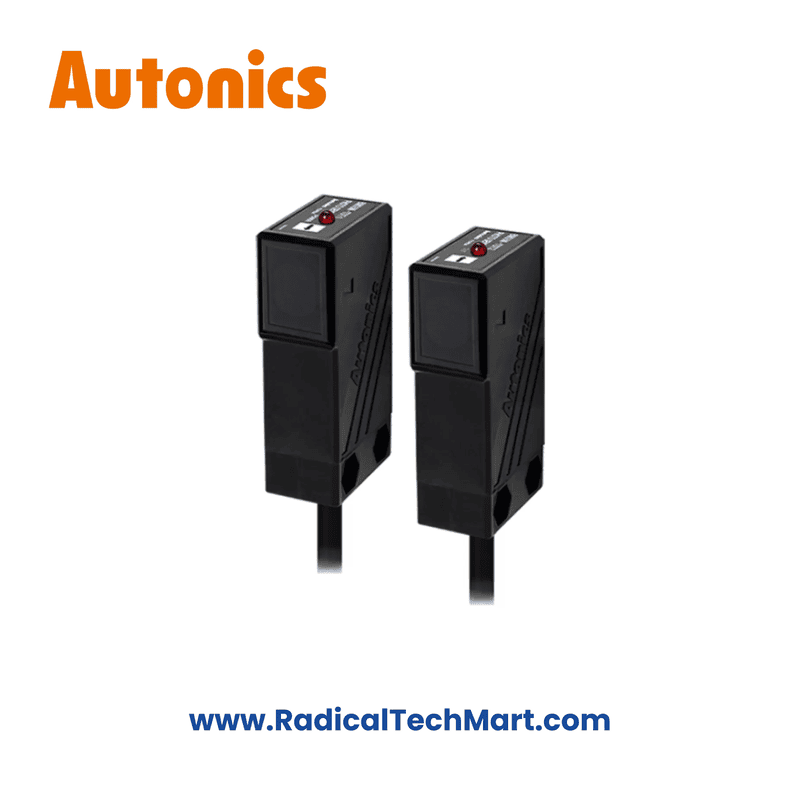

BMS5M-TDT Autonics Photoelectric Sensor
Non-returnable
₹3,544.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model no | BMS5M-TDT |
| Sensing type | Through-beam type |
| Sensing distance | 5m |
| Light source | Infrared LED(940nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC |
| Current consumption | Emitter/Receiver: Max. 50mA |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | NPN open collector |
| Weight | Approx. 180g |
| Approval | CE |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Acrylonitrile butadiene styrene, Sensing part: Polycarbonate, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum |
| Accessories Common | Fixing bracket, Bolts, Nuts |
