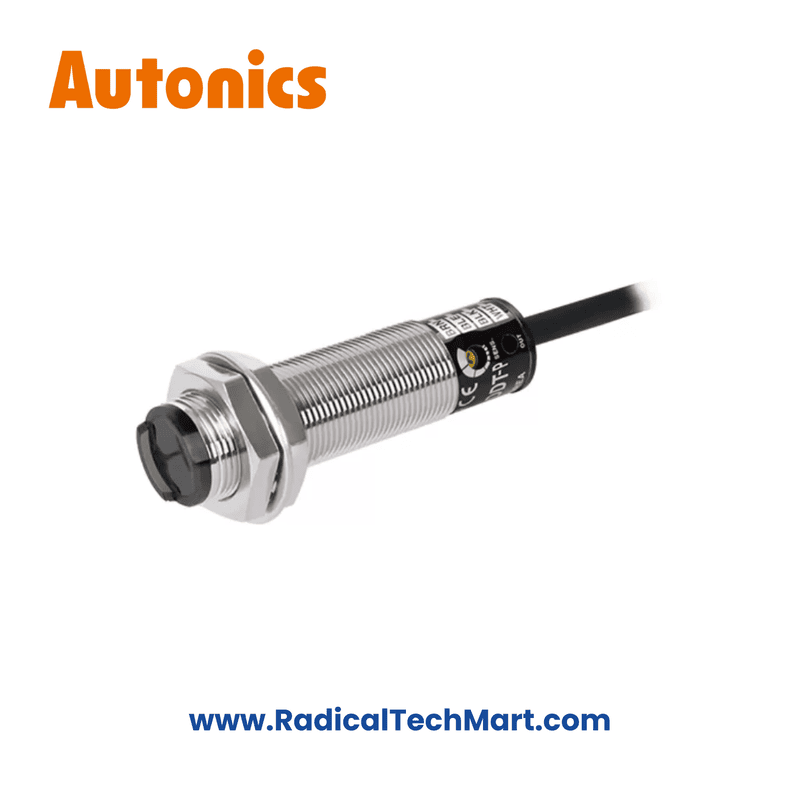

BR100-DDT-P Autonics Photoelectric Sensor
Non-returnable
₹3,299.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model Number | BR100-DDT-P |
| Sensing type | Diffuse reflective type |
| Sensing distance | 100mm |
| Sensing target | Opaque, Translucent material |
| Light source | Infrared LED(940nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC= ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 45mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Control output | PNP open collector
|
| Connection type | Cable type ,connector type |
| Protection structure | IP66 |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | ㆍCase: metal |
| Weight | Approx. 160g(approx. 120g) |
