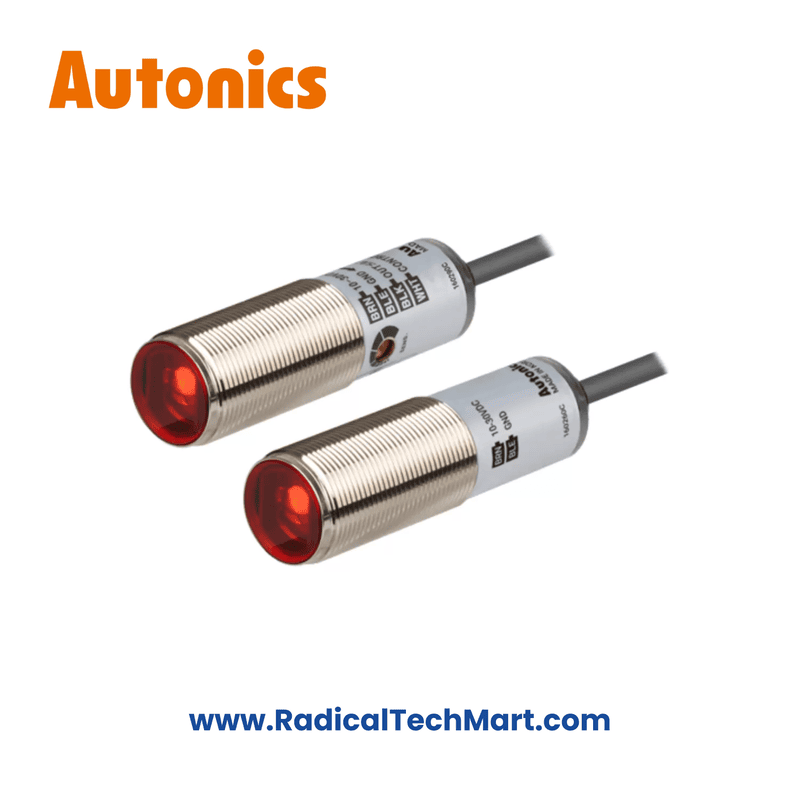

BRQM20M-TDTA-P Autonics Photoelectric Sensor
Non-returnable
₹4,448.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model Number | BRQM20M-TDTA-P |
| Sensing type | Through-beam type |
| Sensing distance | 20m |
| Sensing target | Opaque, Translucent material |
| Light source | Red LED(660nm) |
| Response time | Max. 1ms |
| Power supply | 10-30VDC ±10%(ripple P-P: max. 10%) |
| Current consumption | Emitter/Receiver: Max. 20mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Control output | PNP open collector |
| Connection type | Ø4mm, 4-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m) (AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: Ø1mm),Selectable Light ON or Dark ON by control wire (white) |
| Protection structure | IP67(IEC standard) |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | ㆍCase: brass, Ni-plate ㆍLens, Lens cover: polymethyl methacrylate acrylic |
| Weight | Approx. 220g(approx. 70g) |
