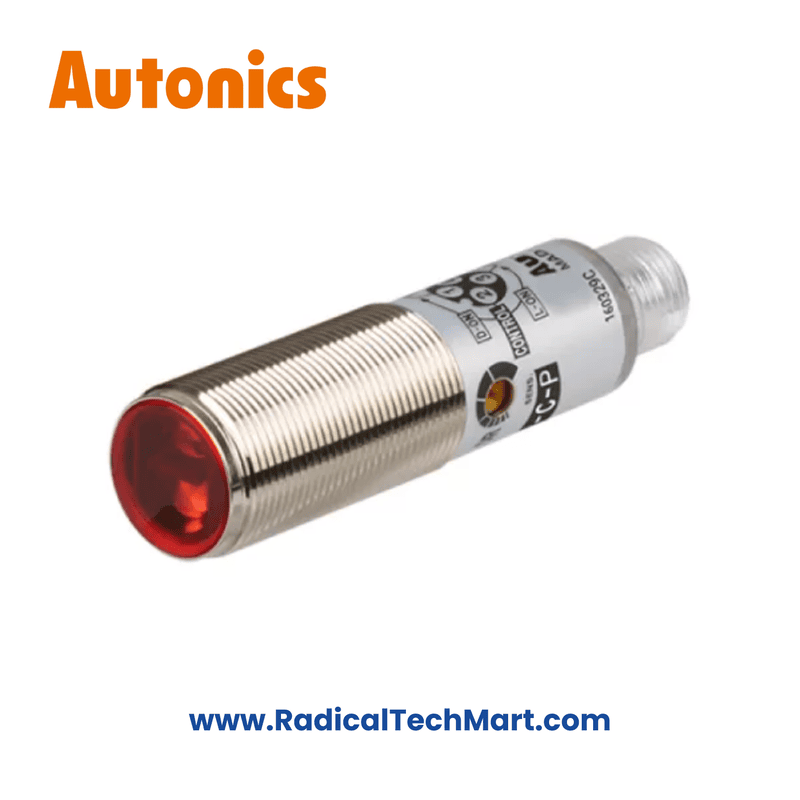

BRQM400-DDTA-C-P Autonics Photoelectric Sensor
Non-returnable
₹2,395.00
Product Details
| Product | Description | |
|---|---|---|
| Brand | Autonics | |
| Model Number | BRQM400-DDTA-C-P | |
| Sensing type | Diffuse reflective type | |
| Sensing distance | 400mm | |
| Sensing target | Opaque, Translucent material | |
| Light source | Red LED(660nm) | |
| Response time | Max. 1ms | |
| Power supply | 10-30VDC ±10%(ripple P-P: max. 10%) | |
| Current consumption | Max. 30mA | |
| Sensitivity adjustment | Sensitivity adjuster | |
| Operation mode | Selectable Light ON or Dark ON by control wire (white) | |
| Control output | PNP open collector | |
| Connection type |
| |
| Environment Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) | |
| Environment Ambient temperature | -25 to 60℃, storage: -30 to 70℃ | |
| Protection structure | IP67(IEC standard) | |
| Approval | CE | |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH | |
| Hysteresis(distance) | Max. 20% at rated sensing distance | |
| Material | Case: brass, Ni-plate Lens, Lens cover: polymethyl methacrylate acrylic | |
| Accessories Common | M18 fixing nut: 2, adjustment screwdriver | |
| Weight | Approx. 140g(approx. 30g) |
