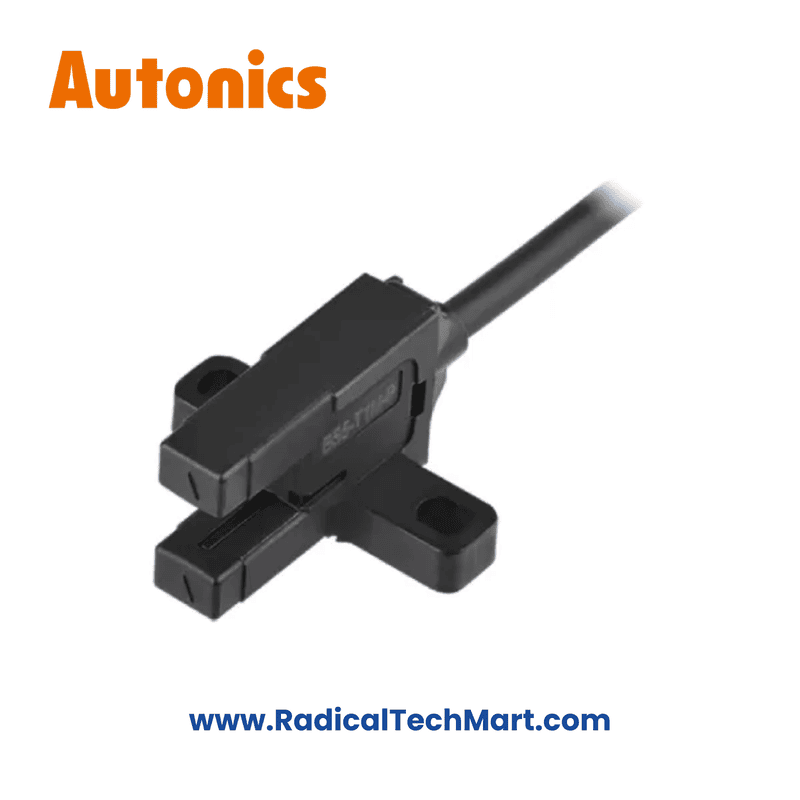

BS5-T1M-P Autonics Photoelectric Sensor
Non-returnable
₹1,011.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model Number | BS5-T1M-P |
| Sensing Type | Through-beam type(not modulated) |
| Sensing Distance | 5mm(fixed) |
| Sensing Target | Opaque material of min. Ø0.8×2mm |
| Light source | Infrared LED(940nm) |
| Response time | Light ON: Max. 20?, Dark ON: Max. 100? |
| Power supply | 5-24VDC ⎓ ±10%(ripple P-P : max. 10%) |
| Current consumption | Max. 30mA |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | PNP open collector |
| Connection type | Cable type(Ø3, 1m) |
| Environment Ambient illumination | Fluorescent lamp: Max. 1,000lx(received illumination) |
| Environment Ambient temperature | -20 to 55℃, storage : -25 to 85℃ |
| Protection structure | IP50 |
| Approval | CE |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Response frequency | 2kHz |
| Hysteresis(distance) | 0.05mm |
| Material | Polybutylene terephthalate |
| Weight | Approx. 50g(approx. 30g) |
