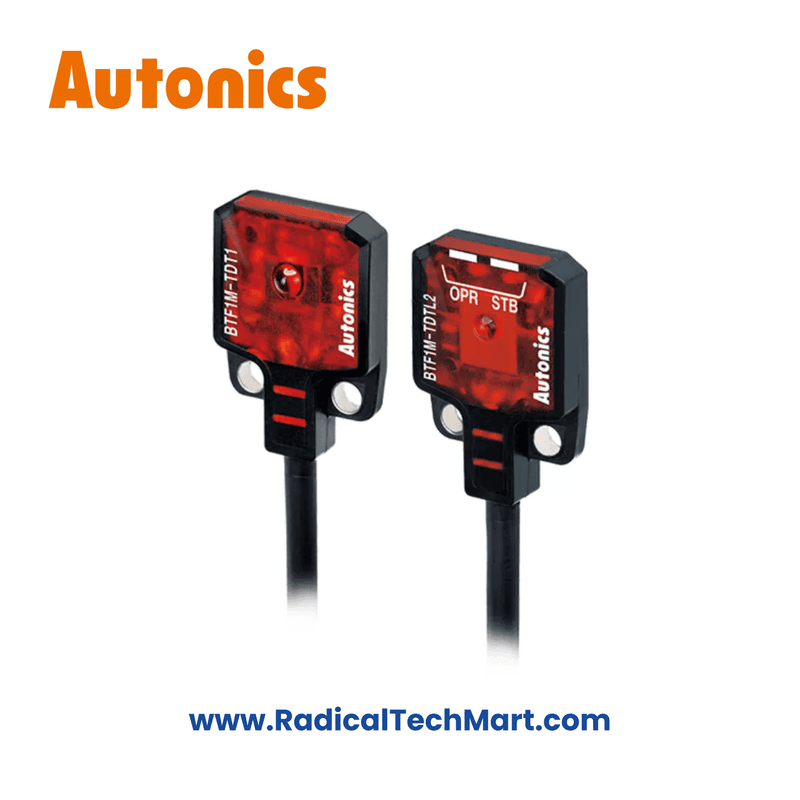

BTF1M-TDTL Autonics Photoelectric Sensor
Non-returnable
₹2,000.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model Number | BTF1M-TDTL |
| Sensing Type | Through beam type |
| Sensing Distance | 1m |
| Sensing Target | Opaque materials of Max. Ø 2mm Min. sensing target : Opaque materials of . Ø 2mm |
| Response time | Max.1ms |
| Power Supply | 12-24VDC ± 10% , Ripple P – P : Max.10% |
| Current Consumption | Emitter/Receiver : Max. 20mA |
| Light Source | Red LED (650nm) |
| Operation Mode | Light ON or Dark On mode selectable |
| Relay life cycle | Mechanically : Min 50,000,000, Electrically : Min 100,000 |
| Indicator | Operation: Red, Stable: Green |
| Connection | Outgoing Cable |
| Vibration | 1.5mm or 300m/s² amplitude at frequency of 10∼55Hz(for 1 min) in each of X, Y, Z directions for 2 hours |
| Shock | Mechanical:- 500m/s² (Approx.50G) in each of X,Y,Z directions for 3 times |
| Ambient Temperature | -25 to 55°C , Storage: -40 to 70°C |
| Ambient Humidity | 35 to 85%RH , storage : 35 to 85%RH |
| Material | Case : PBT, Sensing part: PMMA |
| Protection | IP67(IEC Standard) |
| Cable | Ø 2.5mm, 3-wire, Length :2m, (Emitter of through beam type : Ø 2.5mm, 2-wire, Length :2m) (AWG28, Core diameter: 0.08mm, Number of cores: 19, Insulator out diameter: Ø 0.09) |
| Weight | Approx. 40g |
