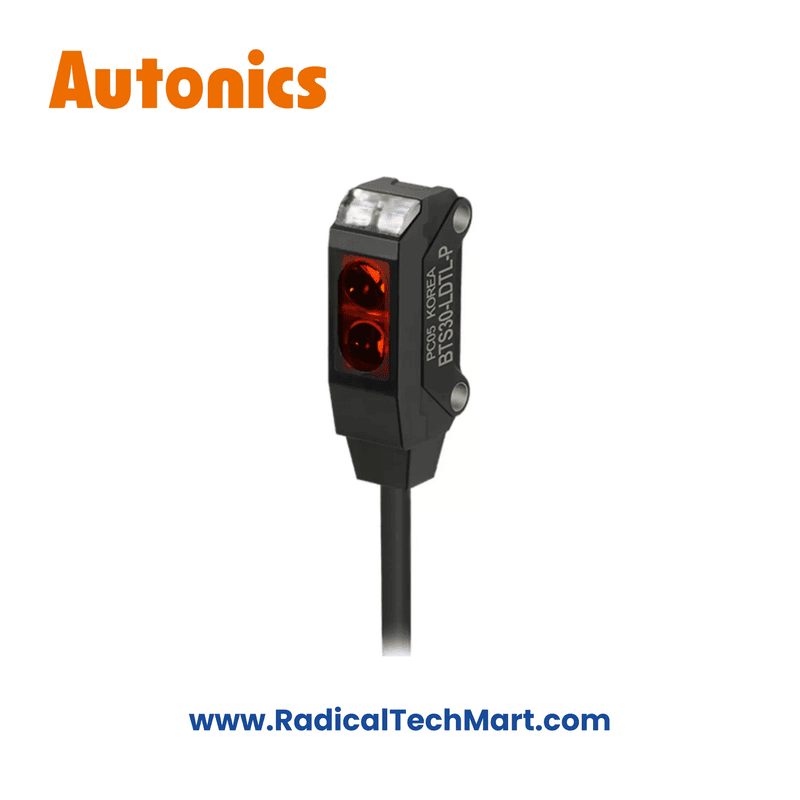

BTS30-LDTL-P Autonics Photoelectric Sensor
Non-returnable
₹2,711.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model no | BTS30-LDTL-P |
| Sensing type | Convergent reflective type |
| Sensing distance | 5 to 30mm |
| Light source | Infrared LED(940nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC |
| Current consumption | Max. 40mA |
| Operation mode | Light ON |
| Control output | PNP open collector |
| Weight | Approx. 45g |
| Protection structure | IP67 |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Polybutylene terephthalate, Sensing part: Polymethyl methacrylate, Bracket: Stainless steel 304, Bolt: Carbon steel wire for cold heading(SWCH10A) |
| Connection type | Cable type(Ø2.5, 2m) |
| Approval | CE |
