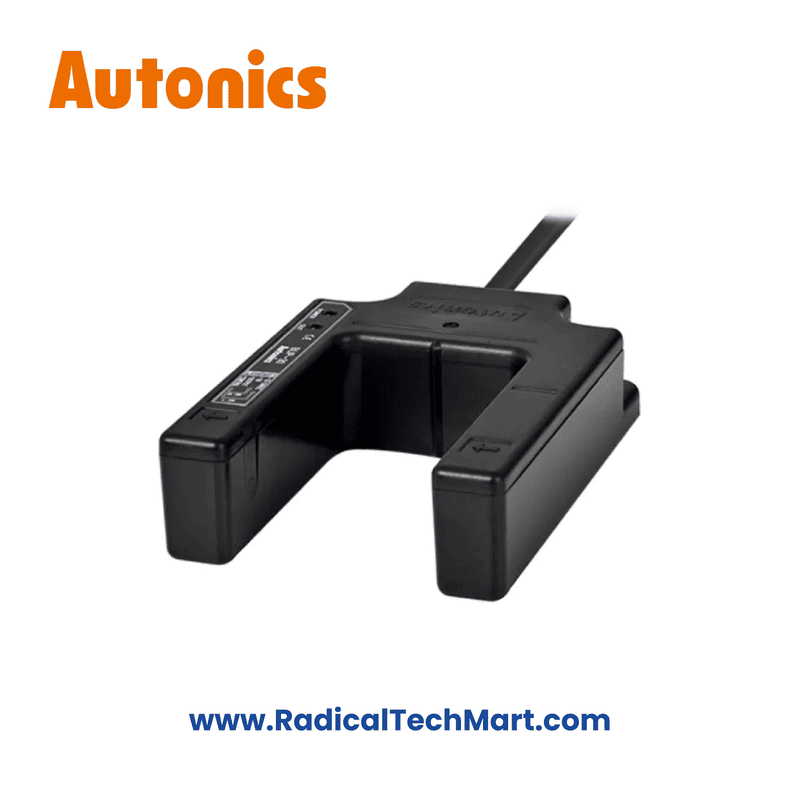

BUP-30 Autonics Photoelectric Sensor
Non-returnable
₹2,898.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model No. | BUP-30 |
| sensing type | Transmitted beam |
| sensing target | Opaque materials of min. Ø 4 mm |
| Operation mode | Selectable Light ON / Dark ON mode by control wire |
| Sensing distance | 30 mm |
| Response time | Max.30mA |
| Light source | Infrared LED (modulated) |
| Sensitivity adjustment | Fixed |
| Control output | NPN open collector output – Load voltage : Max. 30VDC, Load current: Max.200mA, Residual voltage : Max. 1 V PNP open collector output – Output voltage : (Min. power supply-2.5 V), Load current : Max.100mA |
| Protection circuit | Reverse power polarity, Shortly – circuit (overcurrent) protection |
| Indication | Power indicator : Green LED, Operation indicator : Red LED |
| Connections | Outgoing cable |
| Insulation resistance | Min.20 MΩ (at 500VDC mega) |
| Noise Strength | ±240 the square noise wave (pulse width : 1μs) by the noise simulator |
| Dielectric strength | 500VAC 50/60 Hz for 1 minute |
| Vibration | 1.5mm amplitude at frequency of 10∼55Hz in each of X,Y,Z direction for 3 times |
| Shock | 500m/s² (50G) in X,Y,Z direction for 3 times |
| Ambient humidity | 35∼85%RH, storage : 35 ∼ 85%RH |
| Protection | IP66 (IEC Standard) |
| Material | Case : ABS12, cover : PC |
| Cable | 4P, Ø 4mm, Length : 2m |
| Unit weight | Approx. 90g. |
