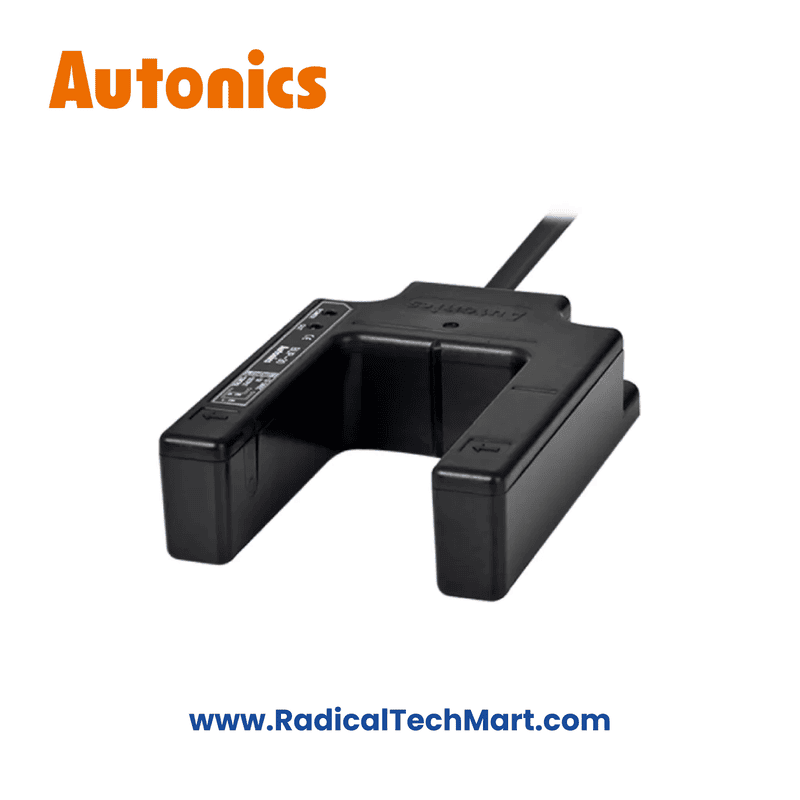

BUP-50-P Autonics Photoelectric Sensor
Non-returnable
₹3,074.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model No. | BUP-50-P |
| sensing type | Through-beam type |
| Sensing Cannel | 1-channel |
| Sensing distance | 50mm |
| Sensing target | Opaquematerial of min. Ø4mm |
| Light source | Infrared LED(940nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 30mA |
| Sensitivity adjustment | Fixed |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | PNP open collector |
| Connection type | Cable type(Ø4, 2m) |
| Environment Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment Ambient temperature | -25 to 65℃, storage: -25 to 70℃ |
| Protection structure | IP66 |
| Approval | CE |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Acrylonitrile butadiene styrene, Cap: Polycarbonate |
| Weight | Approx. 140g |
