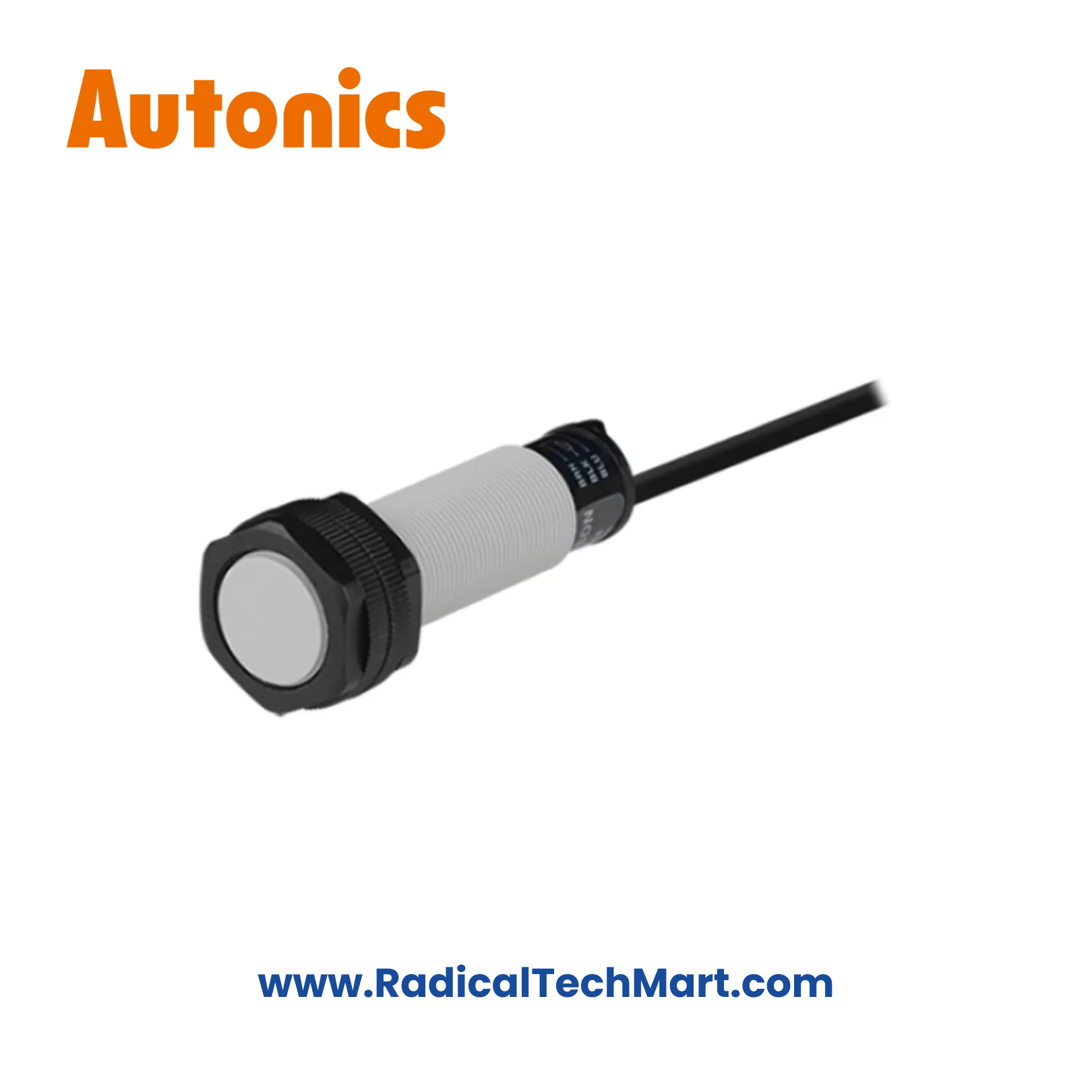

CR18-8DP Autonics Proximity Sensor
Autonics CR18-8DP Capacitive Proximity Sensor (M18, 8 mm, DC 3-Wire PNP)
Industrial M18 capacitive proximity sensor with 8 mm sensing distance for metal and non-metal detection.
Ideal for level detection of liquids, powders, plastics, glass, and packaging materials.
The Autonics CR18-8DP is a DC 3-wire capacitive proximity sensor designed to detect both metallic and non-metallic objects. With an 8 mm sensing distance and sensitivity adjustment, it is widely used for level detection in tanks and hoppers and for detecting powder, granules, plastic, glass, wood, and liquids in industrial automation environments.
Key Features
Capacitive sensing – detects metal & non-metal
Sensing distance: 8 mm
DC 3-wire PNP output
Power supply: 12–24 V DC
Sensitivity adjustment via potentiometer
Red LED operation indicator
IP66 protection (IEC standard)
Built-in surge & reverse polarity protection
Compact M18 cylindrical housing
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | CR18-8DP |
| Series | CR |
| Sensor Type | Capacitive Proximity Sensor |
| Installation | Non-flush |
| Body Size | M18 × 1 |
| Sensing Distance | 8 mm ±10% |
| Setting Distance | 0–5.6 mm (70% of Sn) |
| Output Type | PNP, DC 3-wire |
| Operating Voltage | 12–24 V DC (10–30 V DC) |
| Current Consumption | Max. 15 mA |
| Control Output | Max. 200 mA |
| Response Frequency | 50 Hz |
| Indicator | Red LED |
| Protection Rating | IP66 |
| Operating Temperature | −25 to +70 °C |
| Housing Material | Plastic (PA) |
Applications
Tank & hopper level detection
Powder and granule sensing
Liquid level detection through non-metal walls
Plastic, paper & glass detection
Packaging machinery
Food, pharma & process automation
What’s in the Box?
CR18-8DP Capacitive Proximity Sensor
Mounting nuts (2 nos.)
Washer
Instruction manual
FAQ
Q1. What materials can CR18-8DP detect?
It detects metal, plastic, liquid, powder, granules, glass, and wood.
Q2. Is this sensor PNP or NPN?
This model is PNP, DC 3-wire.
Q3. Can sensing distance be adjusted?
Yes, via the built-in sensitivity adjustment potentiometer.
Q4. Is it suitable for level detection?
Yes, it is commonly used for level detection in tanks and hoppers.
Q5. What is the protection rating?
The sensor has IP66 protection.
