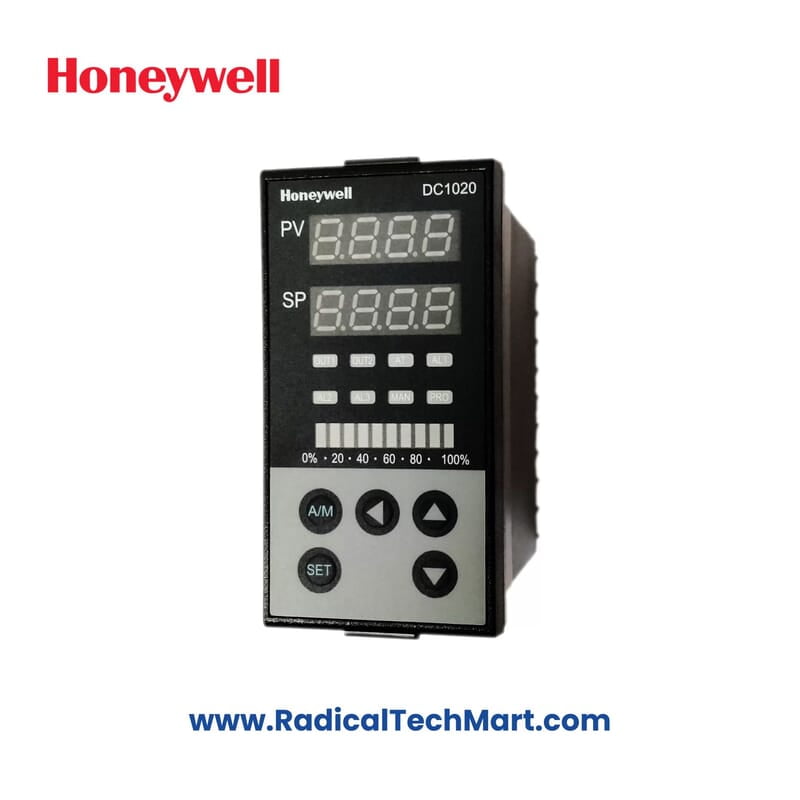

DC1020CL-111-000-E Honeywell PID Temperature Controller
Non-returnable
₹5,900.00 ₹6,500.00
The DC1020CL-111-000-E Honeywell Temperature Controller , DC1000 Series are microprocessor based controllers designed with a high degree of functionality and reliability at a competitive price. Honeywell DC1010CR-112-000-E Temperature Controller are available in different formats: 48×48 (1/16 DIN), 48×96 (1/8 DIN), 72×72 (3/16 DIN), 96×96 (1/4 DIN). This controller series is ideal for the control of temperature, humidity, pressure, flow etc.
in a variety of applications including:
- Plastic Processing
- Package Machinery
- Painting and coating
- Semiconductor packaging / Testing
- Dryers
Features
- Easy to Configure
- Various Control Algorithm
- Auto-Tuning Capability
- Dual Display and Bar graph
- Setpoint Programming
- Extended Alarm Capability
- Communications (RS232 or RS485 (with ASC II & Modbus RTU Protocol)
- IP65 Front Face Protection
- Remote Setpoint Capability
- Manual & Automatic Modes
- Global Approvals – CE & cUL
- Parameter Lock
Product Details
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model No. | DC1020CL-111-000-E |
| Rated power supply voltage | 100 to 240V AC 50/60Hz, 8VA max. 15 to 50V DC, 10VA max. |
| Dimension | 48*96mm |
| Input | Linear |
| Output 1 | Voltage |
| Output 2 | None |
| Alarm | 1 alarms |
| Power Consumption | 8VA (110V), 12VA (220V) |
| PV/SP Indication | 4-digit, 7 segment display |
| Operating Ambient Temperature | -20°C ~ 65°C |
| Operating Ambient Humidity | 50 ~ 85% RH (non condensing) |
| Approvals | UL & CE |
