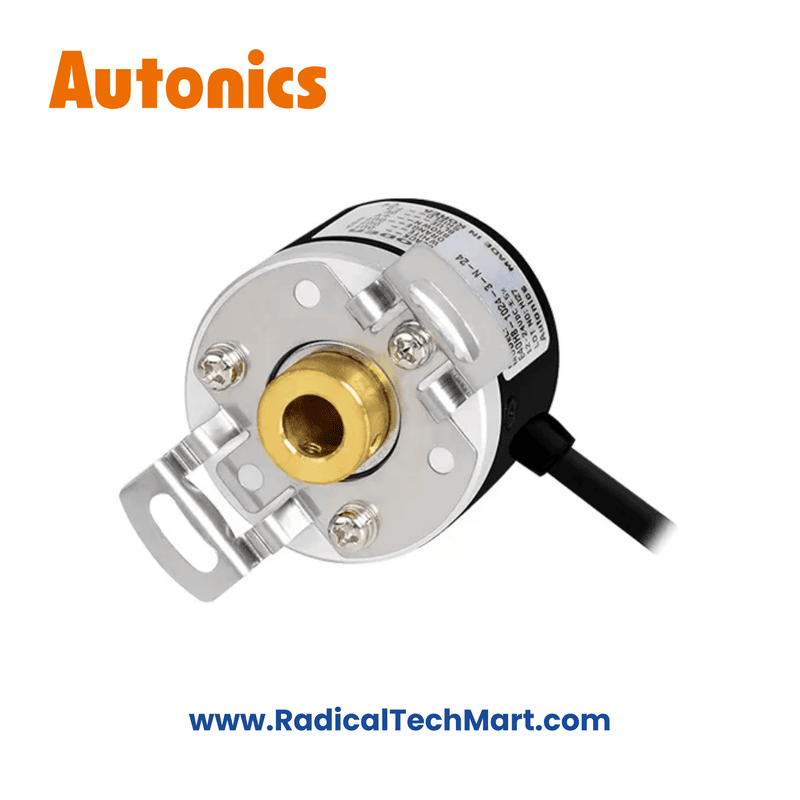

E40H8-100-3-N-5 Autonics Encoder
Non-returnable
₹7,644.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model No. | E40H8-100-3-N-5 |
| Shaft inner diameter | Ø8mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 50gf.cm(max. 0.0049N.m) |
| Resolution | 100P/R |
| Output phase | A, B, Z |
| Control output | NPN open collector |
| Power supply | 5VDC ±5%(ripple P-P: max. 5%) |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Approval | CE |
| Environment Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 120g |
