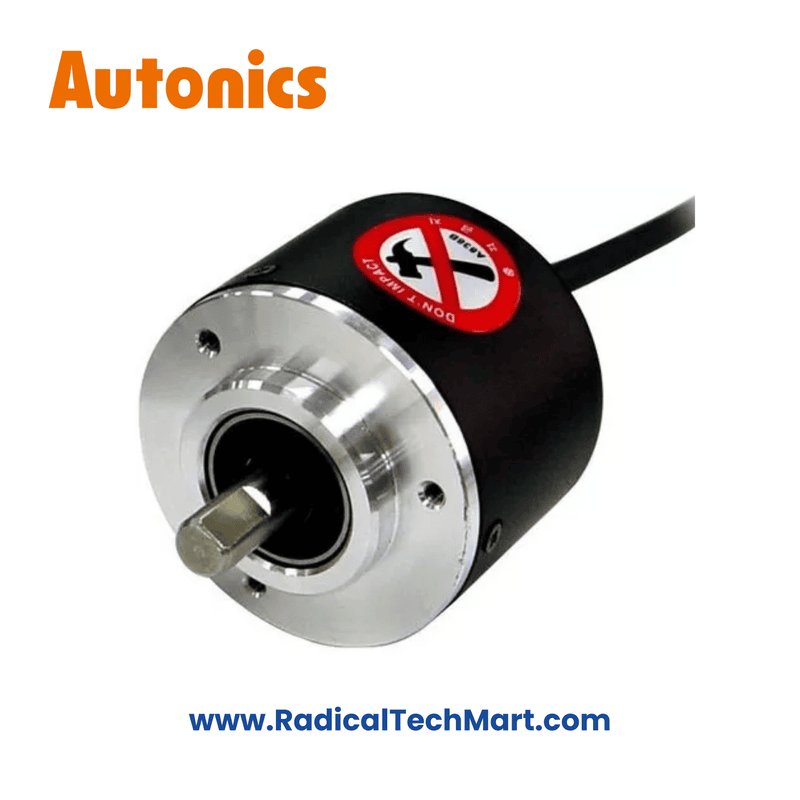

E50S8-1024-3-T-1 Autonics Rotary Encoder
Non-returnable
₹7,773.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model No. | E50S8-1024-3-T-1 |
| Series | E50S Series Shaft Type of Incremental Rotary Encoder |
| Diameter | 50mm, Shaft Type |
| Shaft Diameter | 8mm |
| Pulse/Resolution(P/R) | 1024 |
| Output Phase | A, B, Z |
| Output | Totem Pole Output |
| Power Supply | 5-24VDC |
Max. Response Frequency | 300kHz |
Insulation Resistance | Min. 100MΩ |
Dielectric Strength | 750VAC 50/60Hz for 1 Minute |
Connection | 250mm Connector Cable Type |
Shaft Loading | Radial : 10kgf Thrust : 2.5kgf |
Vibration | 1.5mm Amplitude |
| Shock | Approx. Max. 75G |
| Ambient Temperature | -10 to 70°C, Storage : -25 to 85°C |
| Ambient Humidity | 35 to 85%RH, Storage : 35 to 90%RH |
| Protection | IP50 |
| Unit Weight | Approx. 275g, Connector Type : 180g |
