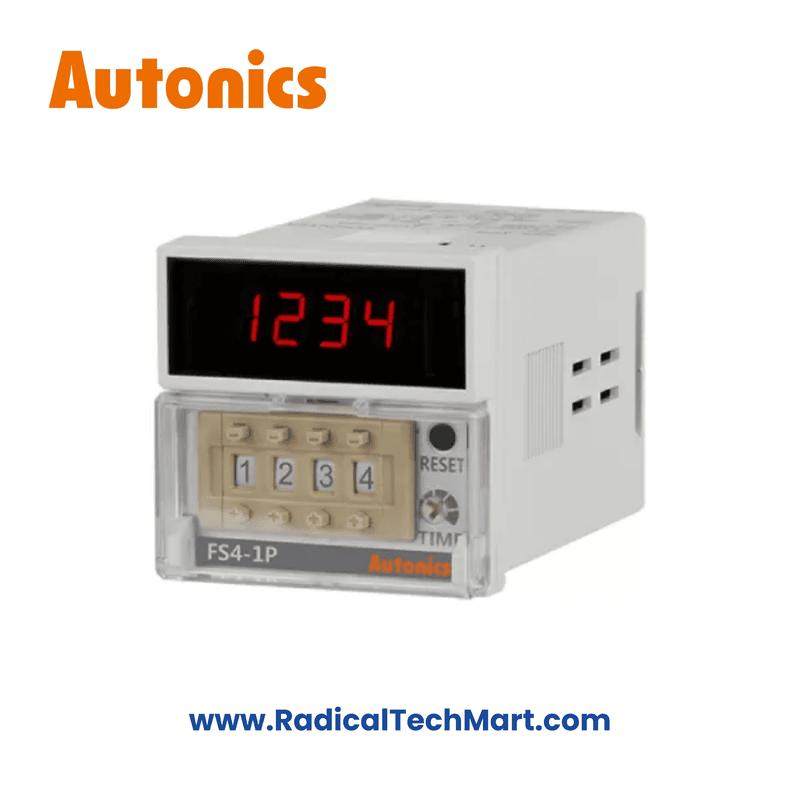

FS4-1P2 Autonics Counter
Non-returnable
₹6,249.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model no | FS4-1P2 |
| Display method | 4-digit 7-segment LED |
| Operation method | Count up, Count down |
| Terminal | 8-pin plug |
| Power supply | 24VAC~ 50/60Hz, 24-48VDC ⎓ |
| External Power Supply | Max. 12VDC ⎓ ±10% 50mA |
| Signal Input Method | Voltage input(PNP), No-voltage input(NPN) |
| Max. Counting Speed | 1, 30, 2k, 5k [cps] |
| Min. signal Width | 20ms |
| Control output Type | 1-stage preset |
| Control output Relay | SPST (1a): 1 |
| Protection structure | IP20(front panel) |
| Approval | CE |
| Environment Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 130g (approx. 90g) |
