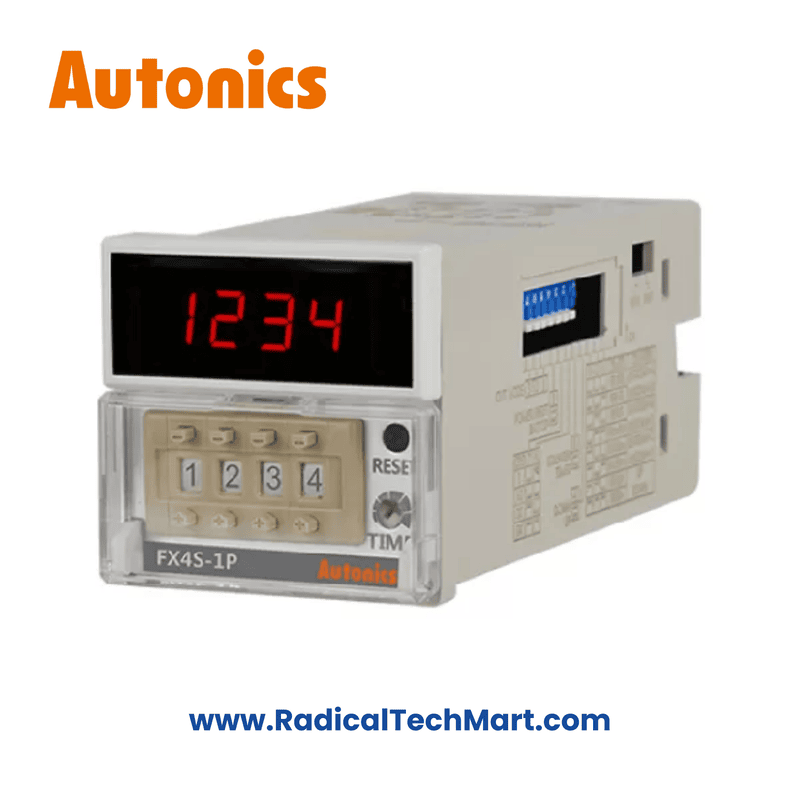

FX4S-1P4 Autonics Counter
Non-returnable
₹5,341.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model no | FX4S-1P4 |
| Display method | 4-digit |
| Character size(WxH) | 3.8×7.6mm |
| Power supply | 100-240VAC 50/60Hz |
| Permissible voltage range | 90 to 110% of rated voltage |
| Power consumption | Max. 4.6VA |
| Max. counting speed of CP1/CP2 | Selectable 1cps/30cps/2kcps/5kcps (DIP switch) |
| Return time | Max. 500ms |
| Min. signal width | INHIBIT, RESET input: approx. 20ms |
| Input method | Selectable voltage input (PNP) method or no-voltage input (NPN) method |
| One-shot output time | 0.05 to 5 sec |
| Protection structure | IP20(front panel) |
| Approval | CE |
| Environment Ambient temperature | -10 to 55ºc„ƒ, storage: -25 to 65ºc„ƒ |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 171g (approx. 100g) |
