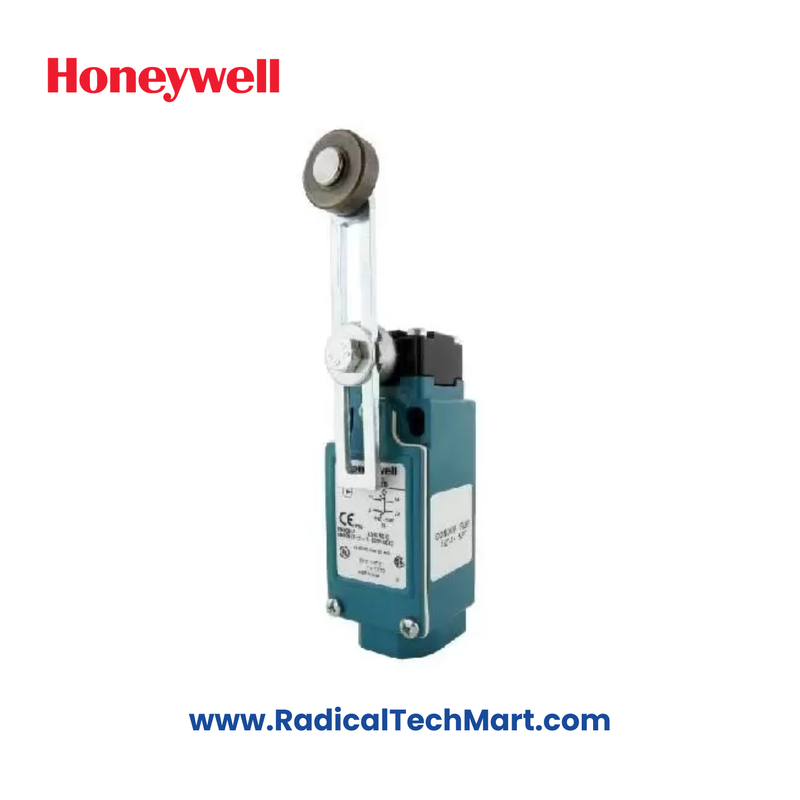

GLCA01C Honeywell Limit Switch

Product Description:

Brand: Honeywell
Model No.: GLCA01A2B

Conformance to Standards:

The product complies with the following standards:

• CE
• EN 50047
• IEC/EN 60947-5-1
• CSA C22.2 #14
• UL 508
• CCC1 GB14048.5
• EN 45545-2 (GLC/GLE)
• EN 61373

Housing Material:

• GLC Series and GLE Series: Electrostatic epoxy-coated zinc
• GLD Series: High-strength glass-reinforced thermoplastic

Actuators:

• Side rotary
• Top pin plunger
• Top roller plunger
• Top roller lever
• Top wobble actuator

Termination:

• 0.5-14 NPT
• PG 13.5
• 20 mm
• PF 1/2
• Deutsch style 4-pin connector
• Other cable/connector options are available upon request (contact Honeywell representative).

Contact Options:

• GLC metal housing and GLD plastic housing:
  • 1NC/1NO (Normally Closed / Normally Open)
  • 2NC (2 Normally Closed)
  • 2NO (2 Normally Open)
• GLE metal housing:
  • 1NC/1NO
  • 2NC
  • 2NO
  • 2NC/2NO

Contact Type:

• Snap-action
• Slow-action break-before-make (BBM)
• Slow-action make-before-break (MBB)
• Slow-action

Contact Material:

• Silver (standard)
• Gold-plated (for low-energy applications)

Electrical Specifications:

• Thermal current (Ith): 10 A
• Rated insulation voltage (Ui): 300 V
• Rated impulse voltage: 2.5 kV
