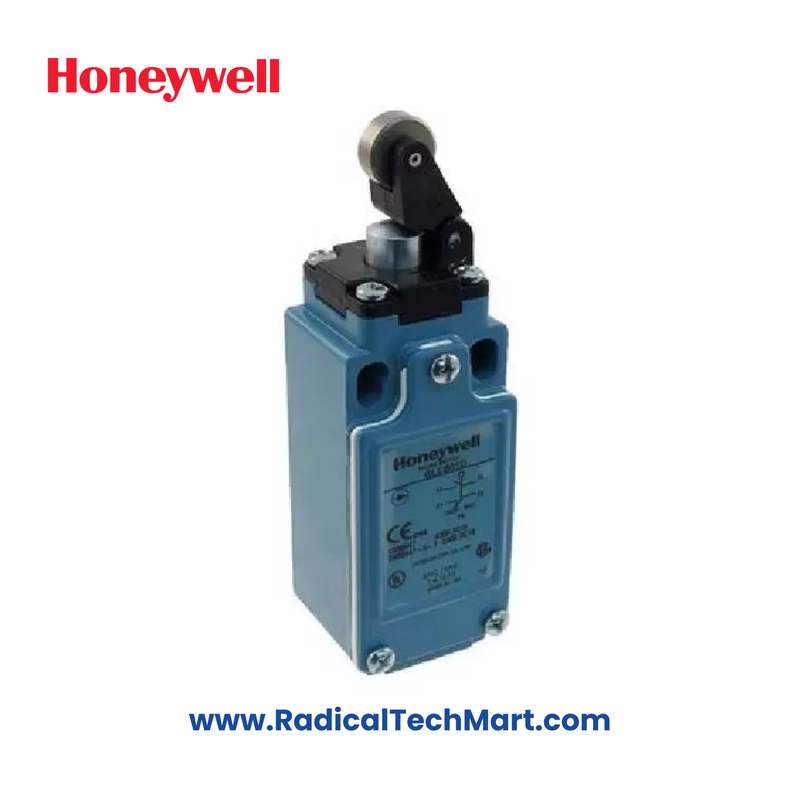

GLCB01D Honeywell Limit Switch

Product Description:

• Brand: Honeywell

• Model No.: GLCB01D

• Conformance to Standards:

  • CE
  • EN 50047
  • IEC/EN 60947-5-1
  • CSA C22.2 #14
  • UL 508
  • CCC1 GB14048.5
  • EN 45545-2 (GLC/GLE)
  • EN 61373

• Housing Material:

  • GLC Series and GLE Series: Electrostatic epoxy-coated zinc
  • GLD Series: High-strength glass-reinforced thermoplastic

• Actuators:

  • Side rotary
  • Top pin plunger
  • Top roller plunger
  • Top roller lever
  • Top wobble actuator

• Termination Options:

  • 0.5-14 NPT
  • PG 13.5
  • 20 mm
  • PF 1/2
  • Deutsch style 4-pin connector
  • Other cable/connector options available (contact Honeywell Representative)

• Contact Options:

  • GLC metal housing and GLD plastic housing: 1NC/1NO, 2NC, 2NO
  • GLE metal housing: 1NC/1NO, 2NC, 2NO, 2NC/2NO

• Contact Type:

  • Snap-action
  • Slow-action break-before-make (BBM)
  • Slow-action make-before-break (MBB)
  • Slow action

• Contact Material:

  • Silver (standard)
  • Gold plated (for low-energy applications)

• Thermal Current (Ith): 10 A

• Rated Insulation Voltage (Ui): 300 V

• Rated Impulse Voltage: 2.5 kV
