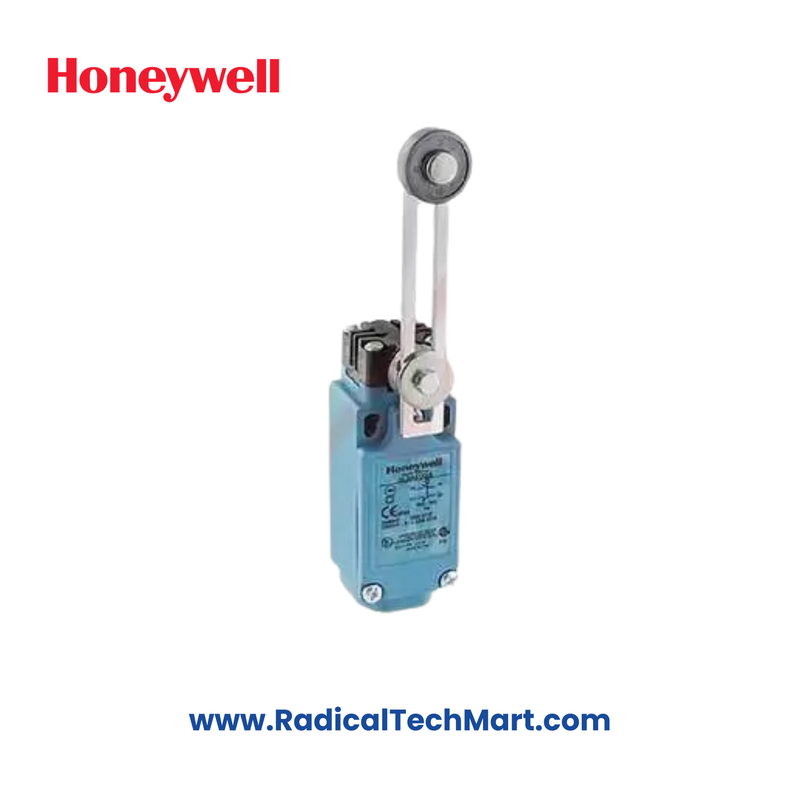

GLDA01A2A Honeywell Limit Switch

Product Description: Honeywell GLDA01A2A

• Brand: Honeywell
• Model: GLDA01A2A
• Actuators:
  • Side rotary
  • Top pin plunger
  • Top roller plunger
  • Top roller lever
  • Top wobble actuator
• Termination Options:
  • 0.5-14 NPT
  • PG 13.5
  • 20 mm
  • PF 1/2
  • Deutsch style 4-pin connector
  • Other cable/connector options available upon request to Honeywell Representative
• Contact Options:
  • GLC metal housing and GLD plastic housing: 1NC/1NO, 2NC, 2NO
  • GLE metal housing: 1NC/1NO, 2NC, 2NO, 2NC/2NO
• Contact Type:
  • Snap-action
  • Slow-action break-before-make (BBM)
  • Slow-action make-before-break (MBB)
  • Slow action
• Contact Material:
  • Silver (standard)
  • Gold plated (low-energy applications)
• Thermal Current (Ith): 10 A
• Rated Insulation Voltage (Ui): 300 V
• Rated Impulse Voltage: 2.5 kV
• Sealing:
  • NEMA 1, 4, 12, 13
  • IP66
• Operating Temperature: -40°C to 85°C (-40°F to 185°F)
• Mechanical Life: Up to 10 million cycles
• Pollution Code: 3
• Maximum Actuation Frequency:
  • 250 operations/minute
  • 100 operations/minute (wobbles)
• Shock Resistance: 50 g per IEC 60068-2-27
• Vibration Resistance: 10 g per IEC 60068-2-6
• Approvals:
  • CE
  • UKCA
  • UL
  • CSA
  • CCC1
• Conformance Standards:
  • EN50047
  • IEC/EN 60947-5-1
  • CSA C22.2 #14
  • UL 508
  • CCC1 GB14048.5
  • EN45545-2 (GLC/GLE)
