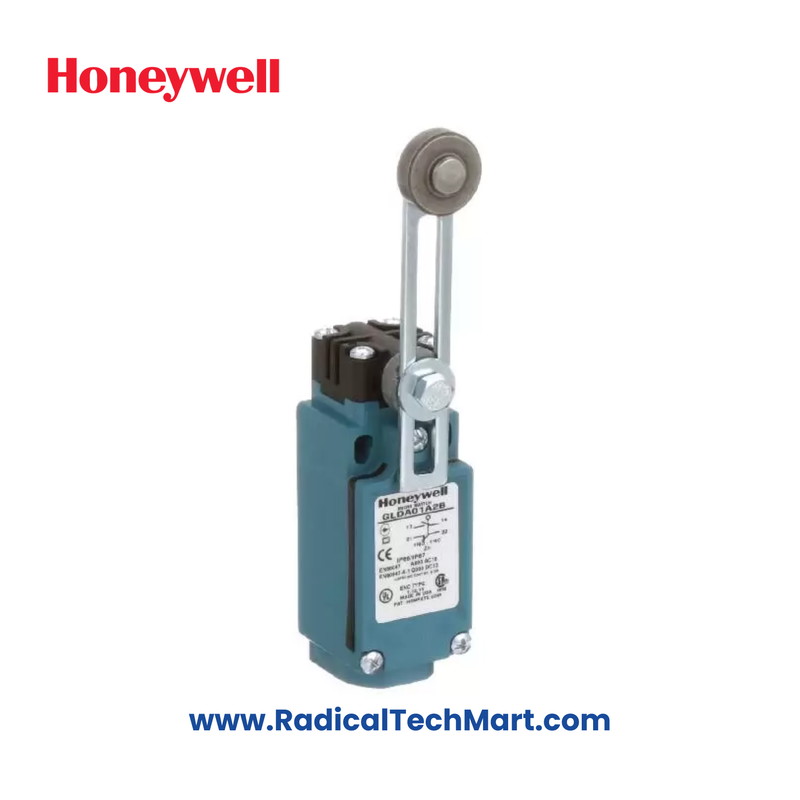

GLDA01A2B Honeywell Limit Switch

Product Description for Honeywell GLDA01A2B

• Brand: Honeywell
• Model: GLDA01A2B

Key Features:

• Actuators:

  • Side rotary
  • Top pin plunger
  • Top roller plunger
  • Top roller lever
  • Top wobble actuator

• Termination Options:

  • 0.5-14 NPT
  • PG 13.5
  • 20 mm
  • PF 1/2
  • Deutsch style 4-pin connector
    Other cable/connector options available upon request. Please contact a Honeywell representative.

• Contact Options:

  • GLC metal housing and GLD plastic housing: 1NC/1NO, 2NC, 2NO
  • GLE metal housing: 1NC/1NO, 2NC, 2NO, 2NC/2NO

• Contact Type:

  • Snap-action
  • Slow-action break-before-make (BBM)
  • Slow-action make-before-break (MBB)
  • Slow action

• Contact Material:

  • Silver (standard)
  • Gold plated (for low-energy applications)

• Electrical Specifications:

  • Thermal Current (Ith): 10 A
  • Rated Insulation Voltage (Ui): 300 V
  • Rated Impulse Voltage: 2.5 kV

• Sealing:

  • NEMA 1, 4, 12, 13
  • IP66

• Operating Temperature Range:

  • -40 °C to 85 °C (-40 °F to 185 °F)

• Mechanical Life:

  • Up to 10 million cycles

• Pollution Code: 3

• Maximum Actuation Frequency:

  • 250 operations/minute
  • 100 operations/minute (wobbles)

• Shock Resistance:

  • 50 g per IEC 60068-2-27
  • Railway application per IEC 61373 Class I Car B Type

• Vibration Resistance:

  • 10 g per IEC 60068-2-6
  • Railway application per IEC 61373 Class I Car B Type

Approvals & Certifications:

• CE
• UKCA
• UL
• CSA
• CCC1

Conformance Standards:

• EN50047
• IEC/EN 60947-5-1
• CSA C22.2 #14
• UL 508
• CCC1 GB14048.5
• EN45545-2 (GLC/GLE)
