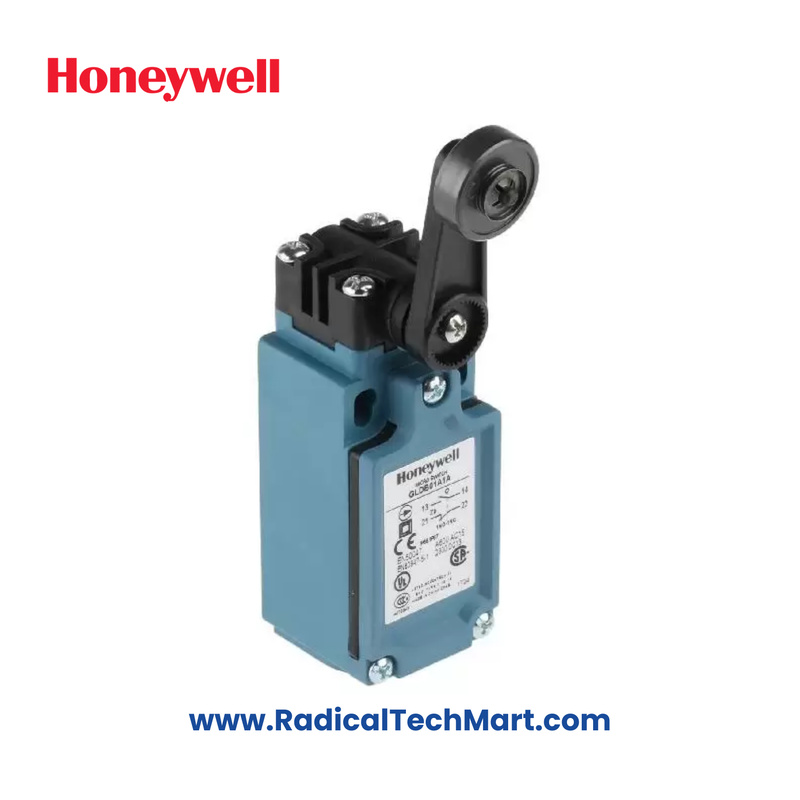

GLDB01A1A Honeywell Limit Switch

Product Description

Brand: Honeywell
Model: GLDB01A1A

Features:

1. Actuators:

   • Side rotary
   • Top pin plunger
   • Top roller plunger
   • Top roller lever
   • Top wobble actuator

2. Termination Options:

   • 0.5-14 NPT
   • PG 13,5
   • 20 mm
   • PF 1/2
   • Deutsch style 4-pin connector
   • Other cable/connector options available (contact Honeywell Representative).

3. Contact Options:

   • GLC (metal housing) and GLD (plastic housing): 1NC/1NO, 2NC, 2NO
   • GLE (metal housing): 1NC/1NO, 2NC, 2NO, 2NC/2NO

4. Contact Type:

   • Snap-action
   • Slow-action break-before-make (BBM)
   • Slow-action make-before-break (MBB)
   • Slow action

5. Contact Material:

   • Silver (standard)
   • Gold-plated (for low-energy applications)

Electrical and Mechanical Specifications:

1. Thermal Current (Ith): 10 A
2. Rated Insulation Voltage (Ui): 300 V
3. Rated Impulse Voltage: 2.5 kV
4. Sealing: NEMA 1, 4, 12, 13; IP66
5. Operating Temperature Range: -40 °C to 85 °C (-40 °F to 185 °F)
6. Mechanical Life: Up to 10 million cycles
7. Max. Actuation Frequency:
   • 250 operations/minute
   • 100 operations/minute (wobble actuators)

Environmental and Durability Standards:

1. Shock Resistance:
   • 50 g per IEC 60068-2-27
   • Railway application: IEC 61373 Class I Car B Type
2. Vibration Resistance:
   • 10 g per IEC 60068-2-6
   • Railway application: IEC 61373 Class I Car B Type
3. Pollution Code: 3

Certifications and Approvals:

1. CE, UKCA, UL, CSA, CCC1
2. Conformance to Standards:
   • EN50047
   • IEC/EN 60947-5-1
   • CSA C22.2 #14
   • UL 508
   • CCC1 GB14048.5
   • EN45545-2 (GLC/GLE)
