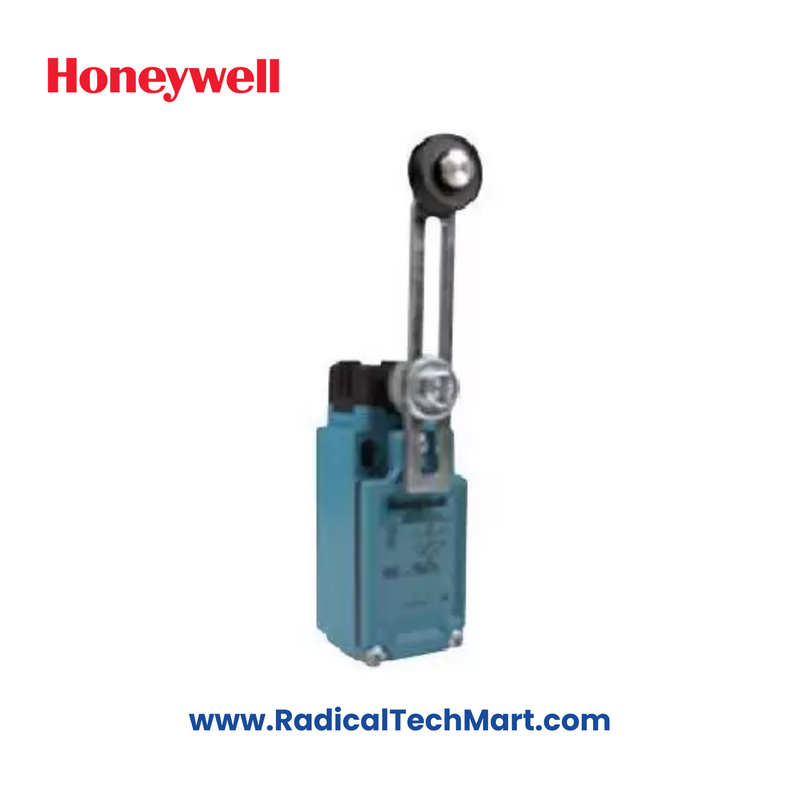

GLDB01A2A Honeywell Limit Switch
Non-returnable
₹1.00
Product Details
Product Description: Honeywell GLDB01A2A
1. Brand: Honeywell
2. Model: GLDB01A2A
3. Actuators Options:
- Side rotary
- Top pin plunger
- Top roller plunger
- Top roller lever
- Top wobble actuator
4. Termination Options:
- 0.5-14 NPT
- PG 13.5
- 20 mm
- PF 1/2
- Deutsch-style 4-pin connector
- Additional cable/connector options available (contact Honeywell Representative).
5. Contact Options:
- GLC (metal housing) and GLD (plastic housing):
- 1NC/1NO, 2NC, 2NO
- GLE (metal housing):
- 1NC/1NO, 2NC, 2NO, 2NC/2NO
6. Contact Type:
- Snap-action
- Slow-action break-before-make (BBM)
- Slow-action make-before-break (MBB)
- Slow action
7. Contact Material:
- Silver (standard)
- Gold-plated (for low-energy applications)
8. Electrical Specifications:
- Thermal Current (Ith): 10 A
- Rated Insulation Voltage (Ui): 300 V
- Rated Impulse Voltage: 2.5 kV
9. Environmental Specifications:
- Sealing: NEMA 1, 4, 12, 13; IP66
- Operating Temperature Range: -40 °C to 85 °C (-40 °F to 185 °F)
- Pollution Code: 3
10. Mechanical Specifications:
- Mechanical Life: Up to 10 million cycles
- Max. Actuation Frequency:
- 250 operations/minute
- 100 operations/minute (wobbles)
- Shock Resistance: 50 g (per IEC 60068-2-27); Railway application per IEC 61373 Class I Car B Type
- Vibration Resistance: 10 g (per IEC 60068-2-6); Railway application per IEC 61373 Class I Car B Type
11. Approvals and Certifications:
- CE
- UKCA
- UL
- CSA
- CCC1
12. Conformance to Standards:
- EN50047
- IEC/EN 60947-5-1
- CSA C22.2 #14
- UL 508
- CCC1 GB14048.5
- EN45545-2 (GLC/GLE)
