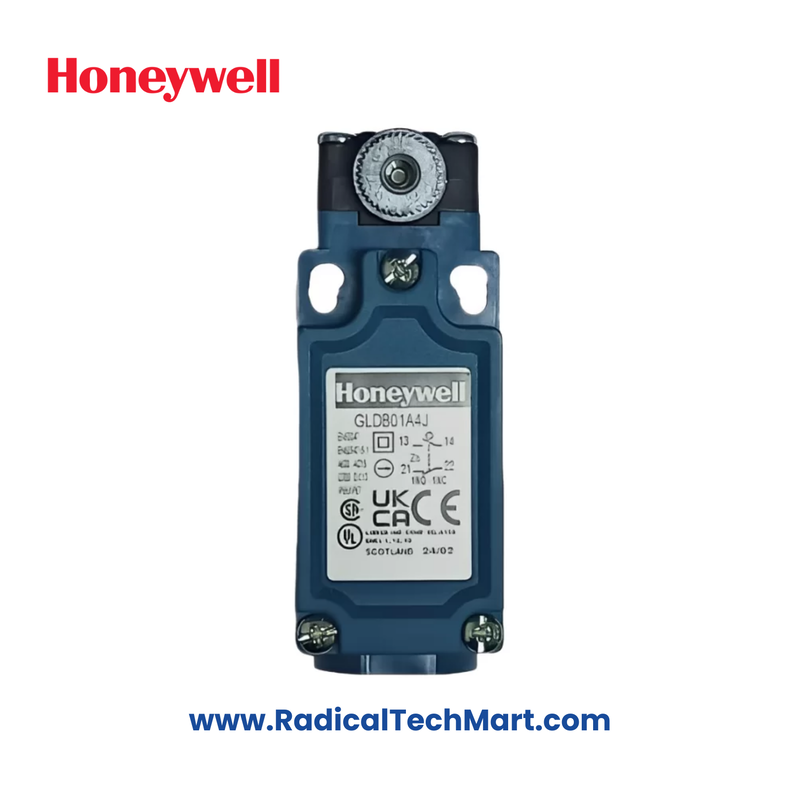

GLDB01A4J Honeywell Limit Switch

Key Features

1. Actuators

   • Side rotary, fixed with 19 mm x 6 mm steel roller.

2. Termination Options

   • 0.5-14 NPT, PG 13.5, 20 mm, PF 1/2.
   • Deutsch-style 4-pin connector.
   • Other cable/connector options available (contact Honeywell Representative).

3. Contact Types

   • Snap-action.
   • Slow-action:
     • Break-before-make (BBM).
     • Make-before-break (MBB).

4. Contact Material

   • Silver.

5. Conduit Size

   • 20 mm.

6. Electrical Ratings

   • Thermal Current (Ith): 10 A.
   • Rated Insulation Voltage (Ui): 300 V.
   • Rated Impulse Voltage: 2.5 kV.

7. Sealing

   • Compliant with NEMA 1, 4, 12, 13, and IP66 standards.

8. Temperature Range

   • Operating: -40 °C to 85 °C [-40 °F to 185 °F].

9. Mechanical Life

   • Up to 10 million cycles.

10. Pollution Code

    • 3.

11. Actuation Frequency

    • Maximum: 250 operations/minute.
    • 100 operations/minute for wobbles.

12. Shock Resistance

    • 50 g (per IEC 60068-2-27).
    • Railway application compliance (IEC 61373 Class I Car B Type).

13. Vibration Resistance

    • 10 g (per IEC 60068-2-6).
    • Railway application compliance (IEC 61373 Class I Car B Type).

14. Certifications and Standards

    • CE, UKCA, UL, CSA, CCC1.
    • Conforms to EN 50047, IEC/EN 60947-5-1, CSA C22.2 #14, UL 508, CCC1 GB14048.5, and EN45545-2 (GLC/GLE).
