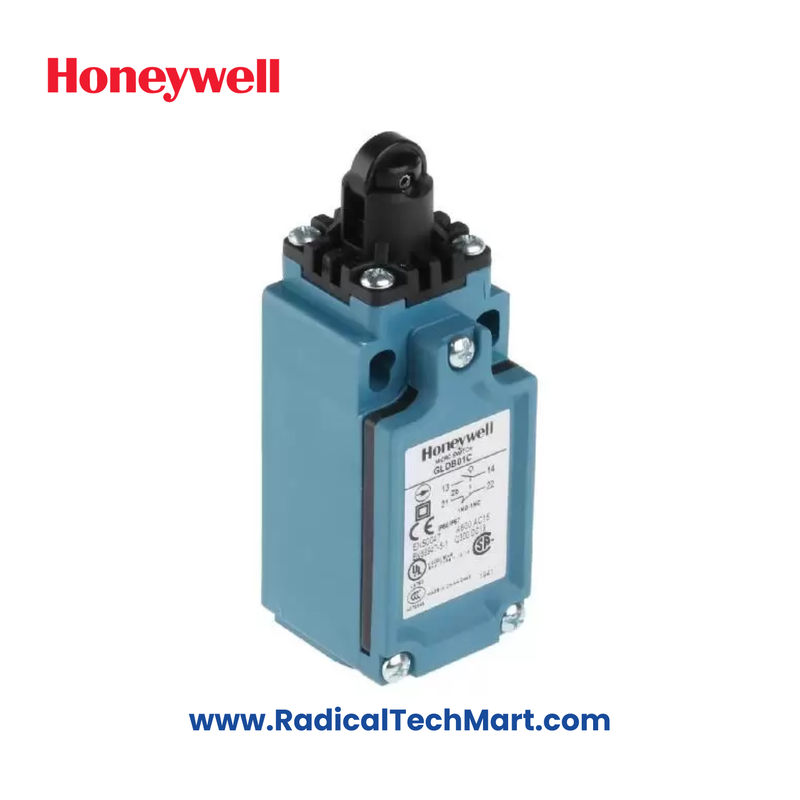

GLDB01C Honeywell Limit Switch

Product Description: Honeywell GLDB01C

Key Features:

• Actuators:

  • Side rotary
  • Top pin plunger
  • Top roller plunger
  • Top roller lever
  • Top wobble actuator

• Termination Options:

  • 0.5-14 NPT
  • PG 13.5
  • 20 mm
  • PF 1/2
  • Deutsch-style 4-pin connector
  • Other cable/connector options available (contact Honeywell Representative).

• Contact Options:

  • GLC metal housing & GLD plastic housing:
    • 1NC/1NO
    • 2NC
    • 2NO
  • GLE metal housing:
    • 1NC/1NO
    • 2NC
    • 2NO
    • 2NC/2NO

• Contact Types:

  • Snap-action
  • Slow-action break-before-make (BBM)
  • Slow-action make-before-break (MBB)
  • General slow action

• Contact Material:

  • Silver (standard)
  • Gold-plated (for low-energy applications)

Performance Specifications:

• Thermal Current (Ith): 10 A
• Rated Insulation Voltage (Ui): 300 V
• Rated Impulse Voltage: 2.5 kV
• Sealing:
  • NEMA 1, 4, 12, 13
  • IP66

Environmental Specifications:

• Operating Temperature: -40 °C to 85 °C [-40 °F to 185 °F]
• Mechanical Life: Up to 10 million cycles
• Pollution Code: 3
• Maximum Actuation Frequency:
  • 250 operations/minute
  • 100 operations/minute (for wobble actuators)

Durability:

• Shock Resistance: 50 g (per IEC 60068-2-27)
  • Railway application compliant with IEC 61373 Class I Car B Type
• Vibration Resistance: 10 g (per IEC 60068-2-6)
  • Railway application compliant with IEC 61373 Class I Car B Type

Certifications and Standards:

• Approvals:
  • CE
  • UKCA
  • UL
  • CSA
  • CCC1
• Standards:
  • EN50047
  • IEC/EN 60947-5-1
  • CSA C22.2 #14
  • UL 508
  • CCC1 GB14048.5
  • EN45545-2 (GLC/GLE)
