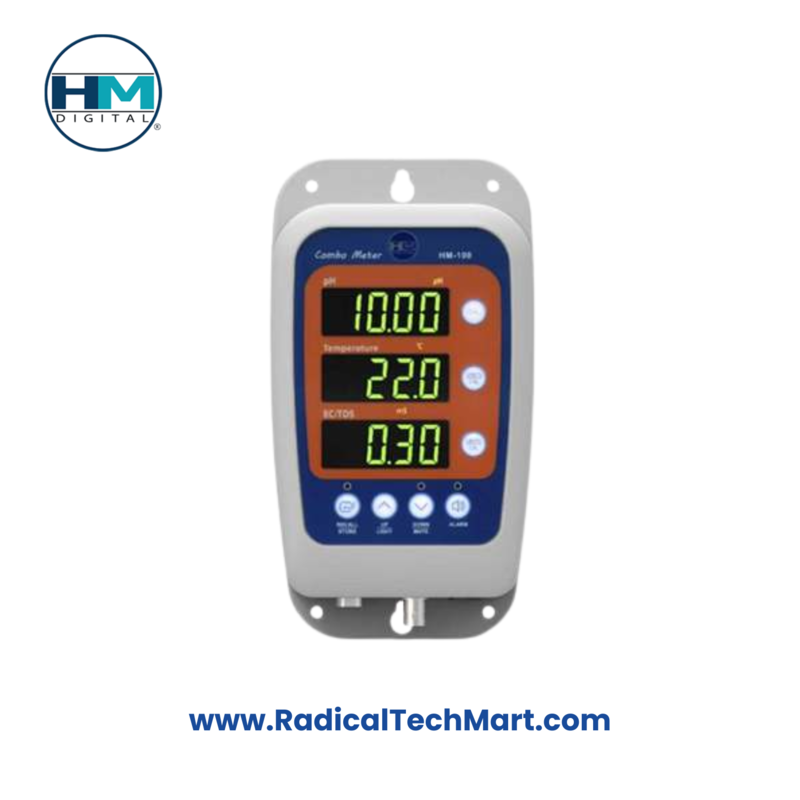

HM-100

The HM-100 is a versatile and high-performance meter designed for precise water quality testing. It combines the ability to measure pH, Electrical Conductivity (EC), Total Dissolved Solids (TDS), salinity, and temperature, making it ideal for applications such as hydroponics, water purification, aquaculture, laboratories, wastewater regulation, pools and spas, and more.

This easy-to-use device offers reliable water purity readings and is perfect for monitoring drinking water, aquariums, hydroponic systems, and water purification setups. By providing accurate TDS readings, the HM-100 helps users ensure that the water is clean and safe for consumption or other uses. With its replaceable sensors, automatic temperature compensation (ATC), and digital calibration, the HM-100 ensures precise and consistent results.

Features:

• Measures pH, EC, TDS, salinity, and temperature
• Four scales: pH, mS, ppm (0.5 NaCl), ppm (0.7 442™)
• Automatic Temperature Compensation (ATC) with three temperature coefficients
• Digital Calibration (push-button) at any point within the meter's range
• Data hold function (max. 6 data values)
• Large, easy-to-read LCD screen
• Simultaneously displays three parameters: pH/EC or TDS/Temperature
• Replaceable sensors (model SP-C2 for conductivity, SP-P5 for pH)
• Factory calibrated (pH/EC/TDS)
• Includes power cable, pH 4 & 7 calibration solutions, and pH storage solution
• One-year warranty

Product Specifications:

• Range:

  • pH: 0.1 - 14.0 pH
  • Temperature: 0.0 - 60.0°C / 32.0 - 122.0°F
  • TDS: 0 - 9990 ppm
  • EC: 0 - 10.00 mS

• Resolution:

  • pH: 0.1 pH
  • Temperature: 0.1°C / 0.1°F
  • TDS: 1 ppm (0 - 999 ppm) / 10 ppm (1000 - 9990 ppm)
  • EC: 0.01 mS (0 - 10.00 mS)

• Accuracy:

  • pH: ± 0.1 pH
  • Temperature: ± 1°C / °F
  • EC/TDS: ± 2%

• Units:

  • pH: pH
  • Temperature: °C/°F
  • TDS: ppm (0.5 scale NaCl) / ppm (0.7 scale 442™)
  • EC: mS

• Automatic Temperature Compensation (ATC):

  • ATC Range: 0.0 - 60.0°C

• Data Storage:

  • Max. 6 data values

• Alarm:

  • Low and High limits, separately assigned

• Power:

  • 5V/1A

• Usage Environment:

  • 0 - 50°C / RH 80%

• Sensors:

  • Electroconductivity Sensor
  • Single-junction Ag/AgCl pH Sensor

• Weight:

  • 285g (excluding sensors/accessories)

The HM-100 is the go-to tool for anyone who requires quick and accurate water quality measurements, ensuring that water systems remain safe and reliable for all purposes.
