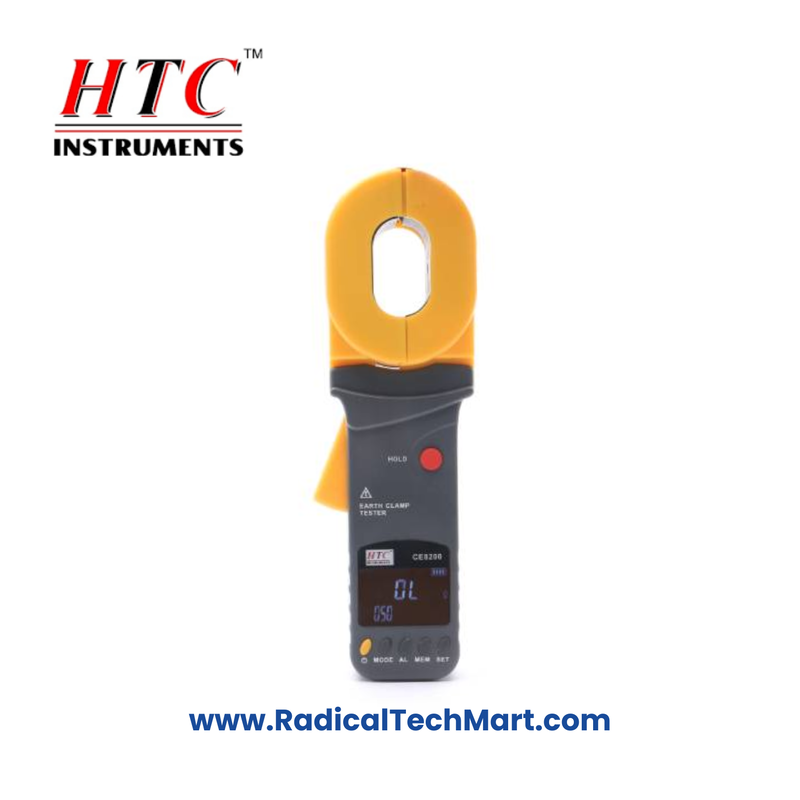

HTC Instruments CE-8200 Clamp on Ground Resistance Tester

Product Overview:

• Brand: HTC
• Model: CE-8200 (HTC-C4)
• Display: Large 3 ¾ (4000 Counts) LCD Display
• Auto Power Off: Yes
• Conductor Size: 32x65 mm
• Max/Min, Data Hold: Yes
• Low Battery Indication: Yes
• Overload Protection: Yes
• Double Insulation Protection Level: Yes
• Spare 5.1 Test Ring: Included for detecting self-precision
• Warranty: 6 months

Technical Specifications:

Resistance Measurement:

• 0.010-0.099Ω: Resolution 0.001Ω, Accuracy ±(1%+0.01Ω)
• 0.10-0.99Ω: Resolution 0.01Ω, Accuracy ±(1%+0.01Ω)
• 1.0-49.9Ω: Resolution 0.1Ω, Accuracy ±(1.5%+0.1Ω)
• 50.0-99.5Ω: Resolution 0.5Ω, Accuracy ±(2%+0.5Ω)
• 100-199Ω: Resolution 1Ω, Accuracy ±(3%+1Ω)
• 200-395Ω: Resolution 5Ω, Accuracy ±(6%+5Ω)
• 400-590Ω: Resolution 10Ω, Accuracy ±(10%+10Ω)
• 600-1000Ω: Resolution 20Ω, Accuracy ±(20%+20Ω)

Dimensions:

• Size: 285 (H) x 85 (W) x 66 (D) mm
