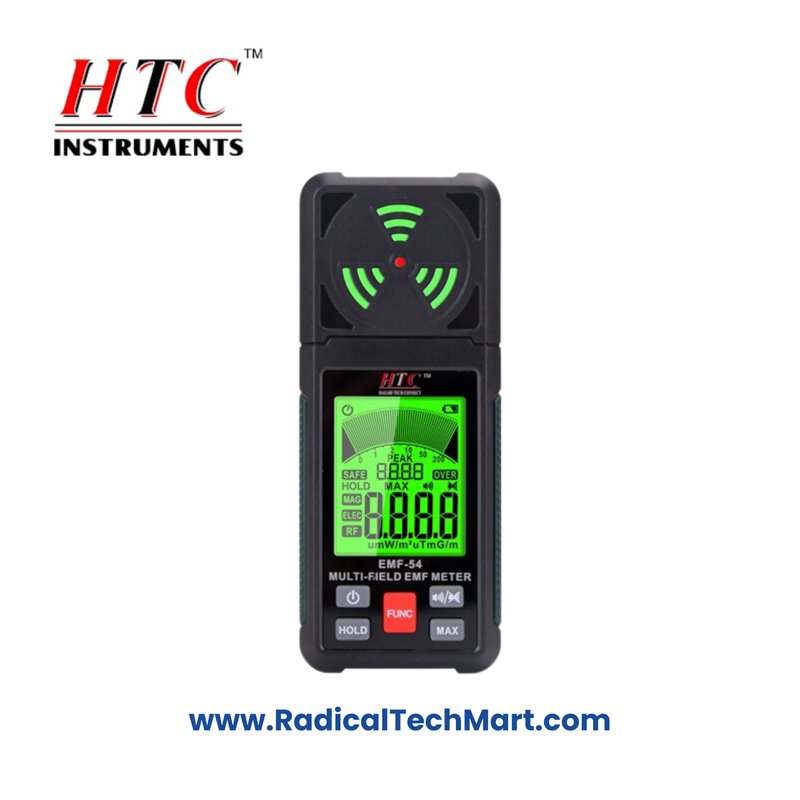

HTC Instruments EMF-54 EMF Meter
Non-returnable
₹2,235.00 ₹3,000.00
Product Details
Features:
- 3-in-1 Measurement: Measures Magnetic Field, Electric Field, and High-Frequency fields.
- Magnetic Field Measurement: Detects magnetic fields.
- Electric Field Measurement: Measures electric fields.
- High-Frequency Measurement: Capable of measuring high-frequency fields.
- Data Hold: Freezes the current reading for easier observation.
- High Precision Sensor: Ensures accurate measurements.
- Multiple Measurement Modes: Offers different modes for versatile use.
- Buzzer Alarm: Sound and light alarm to indicate exceeding threshold values.
- Auto Power Off: Automatically shuts off after approximately 15 minutes of inactivity.
- 3-Color Backlight: Provides color-coded display for different readings.
Technical Specifications:
| Function | Magnetic Field | Electric Field | High-Frequency Field |
|---|---|---|---|
| Axes | 3-axis | 1-axis | 1-axis |
| Measuring Range | 0.01200.0 µT / 0.12000 mG | 1~2000 V/m | 0.001~100.0 mW/m² |
| 20 µT / 200 µT | 2000 V/m | 2/20/100 mW/m² | |
| 200 mG / 2000 mG | |||
| Resolution | 0.1 / 0.1 µT | 1 V/m | 0.001 / 0.01 / 0.1 mW/m² |
| 0.1 / 1 mG | |||
| Frequency Range | 30~1000 Hz | 30~1000 Hz | 50 MHz~3.5 GHz |
| Alarm | Sound and light alarm (Green, Orange, Red) | Exceeds built-in threshold | Exceeds built-in threshold |
| Auto Power Off | Approx. 15 minutes | Approx. 15 minutes | Approx. 15 minutes |
| Environment | 040°C, 40-80% RH | 040°C, 40-80% RH | 040°C, 40-80% RH |
| Power Supply | 3 x 1.5V AAA batteries (not included) | 3 x 1.5V AAA batteries (not included) | 3 x 1.5V AAA batteries (not included) |
| Size | 142 x 58 x 28 mm | 142 x 58 x 28 mm | 142 x 58 x 28 mm |
| Weight | 125g | 125g | 125g |
| Safety Standard | EN61326-1 | EN61326-1 | EN61326-1 |
