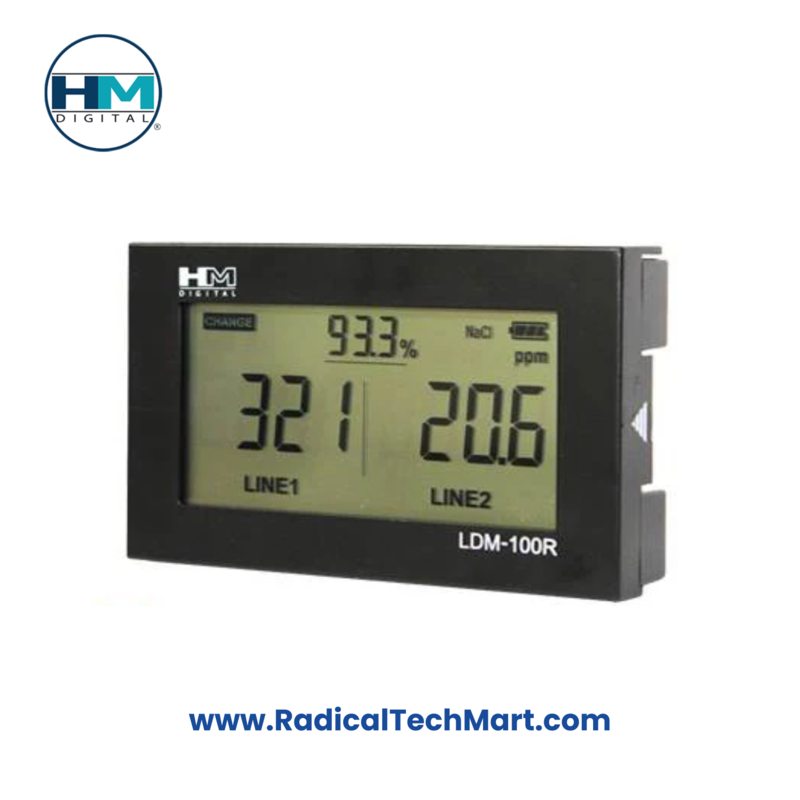

LDM-100R

The LDM-100R is a dual-line, commercial-grade monitor designed to provide accurate readings for both input (feed water) and output (product water) in Reverse Osmosis (RO) systems. It also calculates the percentage of TDS rejection, giving users insights into the efficiency of their RO system. With automatic temperature compensation (ATC), the monitor ensures accurate readings across a wide range of temperatures.

Features:

• Monitors the efficiency of your commercial RO system
• Dual-line TDS/EC displays for feed and product water
• Automatically calculates the percentage of TDS rejection
• Extended battery life for continuous monitoring
• Includes two sensor probes and batteries
• Built-in Automatic Temperature Compensation (ATC) for accurate readings at temperatures from 1°C to 65°C

Product Specifications:

• Range:
  • TDS: 0-9999 ppm (mg/L); 0-10.0 ppt (g/L)
  • EC: 0-9999 µS; 0-20.00 mS
• Accuracy: +/- 2%
• Resolution:
  • 0-99.9: 0.1 ppm/µS
  • 100-9999: 1 ppm/µS
• Automatic Temperature Compensation (ATC): Yes (1 – 65°C)
• Calibration: Digital, adjustable to any point
• Sensor: 1/2” NPT threaded
• Sensor Cable: 3 meters (9.8 ft.)
• Power Source: 2 x 1.5V AA batteries
• Battery Life: Approximately 2 years
• Dimensions: 12 x 7.5 x 2.6 cm (4.7 x 3 x 1 inches)
• Weight: 198g (7 oz.)
• Warranty: 1 Year

The LDM-100R provides reliable, real-time monitoring of your RO system’s performance, ensuring that your water filtration processes are running efficiently and accurately.
