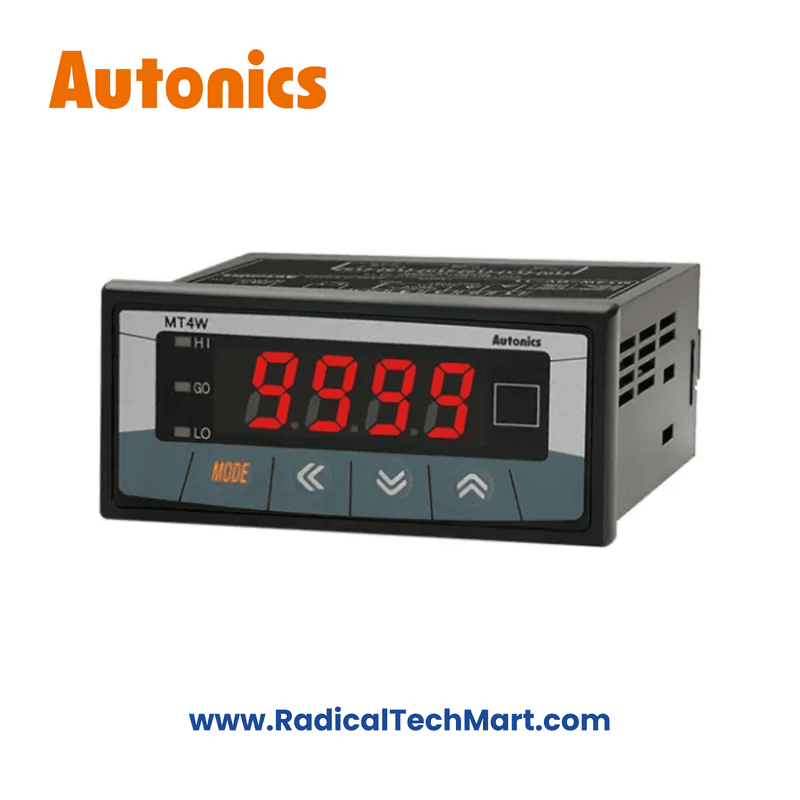

MT4W-DV-49 Autonics Panel Meter
Non-returnable
₹7,525.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model no | MT4W-DV-49 |
| Display method | 4-digit 7-segment LED |
| Character height | 14.2mm |
| Max. display Range | -1999 to 9999 |
| Measurement | DC voltage |
| Input specification | 0-500V, 0-100V, 0-50V, 0-10V, 0-5V, 0-1V, 0-250mV, 0-50mV |
| Power supply | 100-240VAC~ 50/60Hz |
| Output Main Output(Comparative Value) | PNP open collector (HI, GO, LO) |
| Output Sub Output(Display Value) | RS485 communication |
| Display accuracy | • 23?±5? – F.S. ±0.1% rdg ±2-digit F.S. +0.3% rdg ±3-digit max. only for 5A terminal. • -10? to 50℃ – F.S. ±0.5% rdg ±3-digit |
| Max. allowable input | 110% F.S. for each measured input range |
| A/D conversion method | (Sigma Delta) ADC |
| Sampling cycle | 50ms |
| Hold function | Includes (external hold function) |
| Environment Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark:  , dielectric strength between the measuring input part and the power part: 1kV) |
| Weight | Approx. 326g (approx. 211g) |
