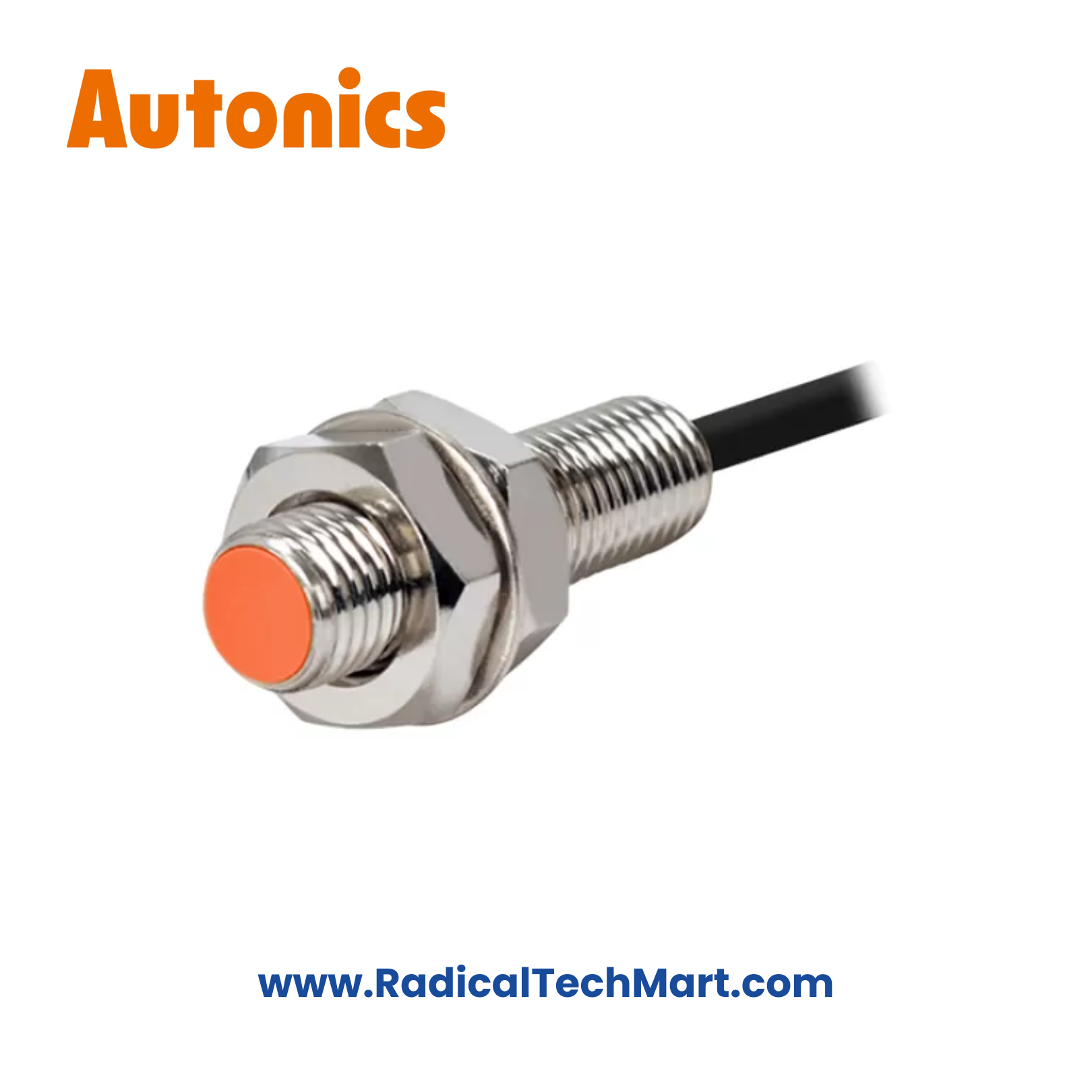

PR08-1.5DP Autonics Inductive Proximity Sensor
Autonics PR08-1.5DP Inductive Proximity Sensor – M8, 1.5 mm, PNP, DC 3-Wire
Autonics PR08-1.5DP is an M8 inductive proximity sensor with 1.5 mm sensing distance and PNP DC 3-wire output.
Designed for accurate metal object detection in compact industrial automation and PLC-based systems.
The Autonics PR08-1.5DP is a compact inductive proximity sensor used for detecting metallic targets only. With an M8 threaded housing, 1.5 mm sensing distance, and PNP DC 3-wire output, it is ideal for PLC-controlled machines, OEM equipment, and compact automation panels.
Key Features
Detects metal objects only (inductive sensing)
Compact M8 cylindrical housing
1.5 mm sensing distance
PNP, DC 3-wire output
Red LED operation indicator
Reverse polarity & short-circuit protection
High repeatability and stable output
IP67 protection for industrial use
Technical Specifications
| Parameter | Value |
|---|---|
| Model | PR08-1.5DP |
| Sensor Type | Inductive Proximity Sensor |
| Housing Size | M8 |
| Installation | Flush (Shielded) |
| Sensing Distance | 1.5 mm |
| Setting Distance | 0 – 1.05 mm |
| Standard Target | Iron 8 × 8 × 1 mm |
| Output Type | PNP |
| Wiring | DC 3-Wire |
| Supply Voltage | 12–24 V DC (10–30 V DC operating) |
| Current Consumption | ≤ 10 mA |
| Control Output | Max. 200 mA |
| Response Frequency | Approx. 1.5 kHz |
| Indicator | Red LED |
| Protection Rating | IP67 |
| Ambient Temperature | −25 °C to +70 °C |
| Cable Length | 2 m |
| Body Material | Nickel-plated brass |
| Sensing Face | PBT |
Applications
PLC-based automation systems
Compact OEM machines
Control & junction panels
Conveyor & counting systems
Packaging & assembly lines
Position, limit & part detection
What’s in the Box
1 × Autonics PR08-1.5DP Sensor
2 × Mounting nuts
1 × Washer
Instruction leaflet
FAQ
Q1. What materials can this sensor detect?
Only metal objects (inductive principle).
Q2. What is the difference between DP and DN?
DP = PNP output, DN = NPN output.
DP is used when PLC input expects a sourcing signal.
Q3. Is this suitable for compact installations?
Yes. The M8 size is ideal for tight spaces.
Q4. Can it work in dusty or oily environments?
Yes. IP67 protection ensures reliable operation.
Q5. What is the sensing distance?
1.5 mm for standard iron target.
