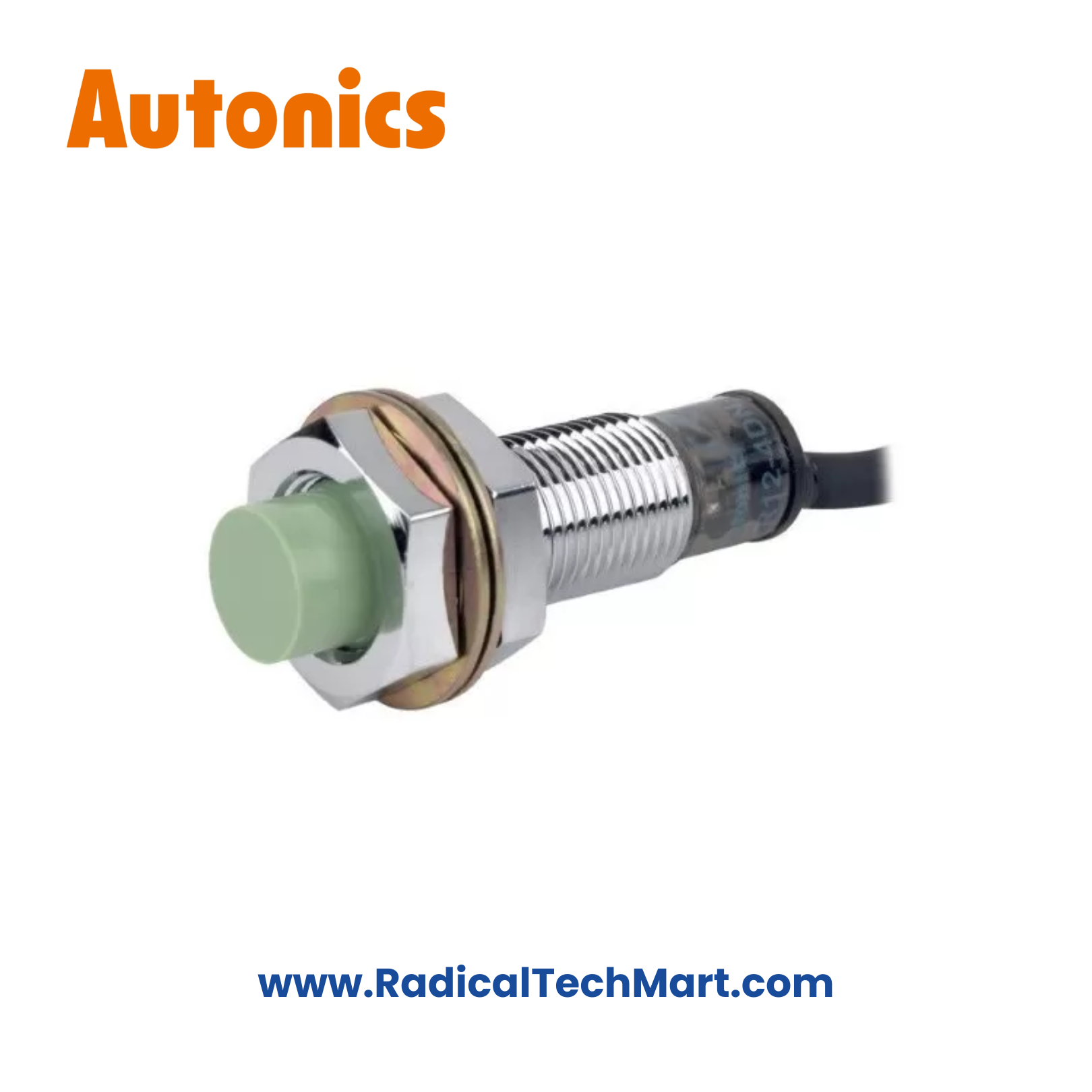

PR12-4DN Autonics Proximity Sensor
Non-returnable
₹11,499.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model No. | PR12-4DN |
| 4 mm | |
| Current Consumption | 10 mA (Max) |
| DC-3 Wire Type | |
| Industrial | |
| Hysteresis | 10% |
| Standard Sensing Target | 12 x 12 x 1 mm (Iron) |
| Power Supply | 12-24 VDC |
| Leakage Current | 10mA (Max) |
| Response Frequency | 500Hz |
| Residual Voltage | 1.5 V (Max) |
| Control Output | 200 mA |
| Insulation Resistance | 50 M Ω (Min) |
| Dielectric Strength | 1500 VAC 50/60 Hz for 1 min |
| Vibration | 1mm amplitude |
| Shock | 500 m/s² |
| Indicator | Operation Indicator (Red Led) |
| Ambient Temperature | -25 to +70ºC |
| Storage Temperature | -30 to +80ºC |
| Ambient Humidity | 35 to 95% Rh |
| Protection Circuit | Reverse power polarity, surge, overcurrent protection |
| Setting Distance | 0~12.8 mm |
| Protection | IP67 (IEC standard) |
| Weight | 70g |
