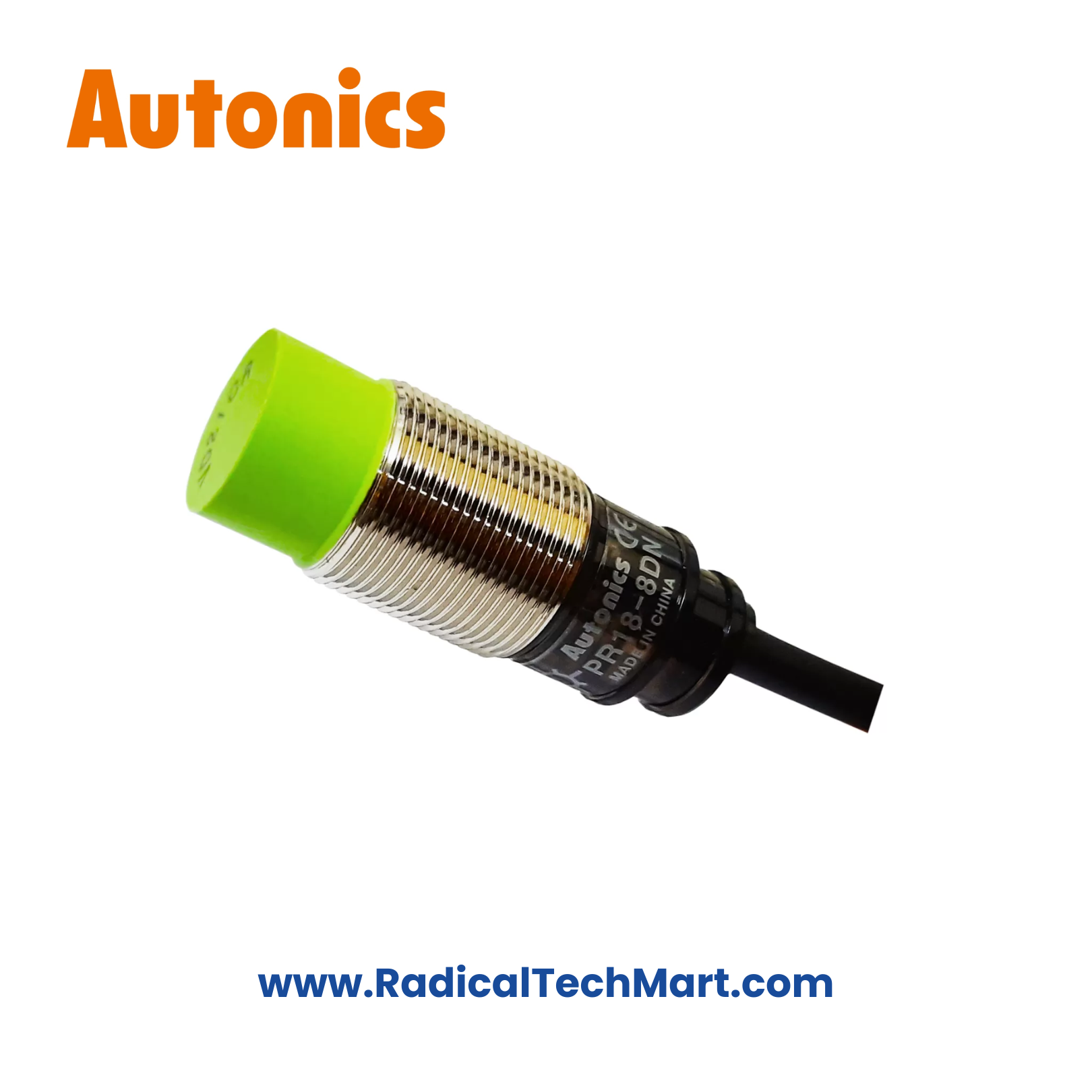

PR18-8DN Autonics Proximity Sensor
Non-returnable
₹1,179.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model No. | PR18-8DN |
| 8mm | |
| 350Hz | |
| Non-flush | |
| 25x25x1mm(iron) | |
| DC 3-wire type | |
| M18 | |
| Max. 10mA | |
| Standard cable | |
| IP67(IEC standard) | |
| -25 to 70 Deg. C | |
| Max. 10% of sensing distance | |
| Max. 1.5V | |
| Setting Distance | 0 to 5.6mm |
| 12-24VDC | |
| Control Output | 200 mA |
| Insulation Resistance | 50 M Ω (Min) |
| Dielectric Strength | 1500 VAC 50/60 Hz for 1 min |
| Vibration | 1mm amplitude |
| Shock | 500 m/s² |
| Indicator | Operation Indicator (Red Led) |
| Ambient temperature | -25 to 70 Deg. C |
| Ambient Humidity | 35 to 95% Rh |
| Protection Circuit | Reverse power polarity, surge, overcurrent protection |
| Protection | IP67 (IEC standard) |
| Approx. 122g |
