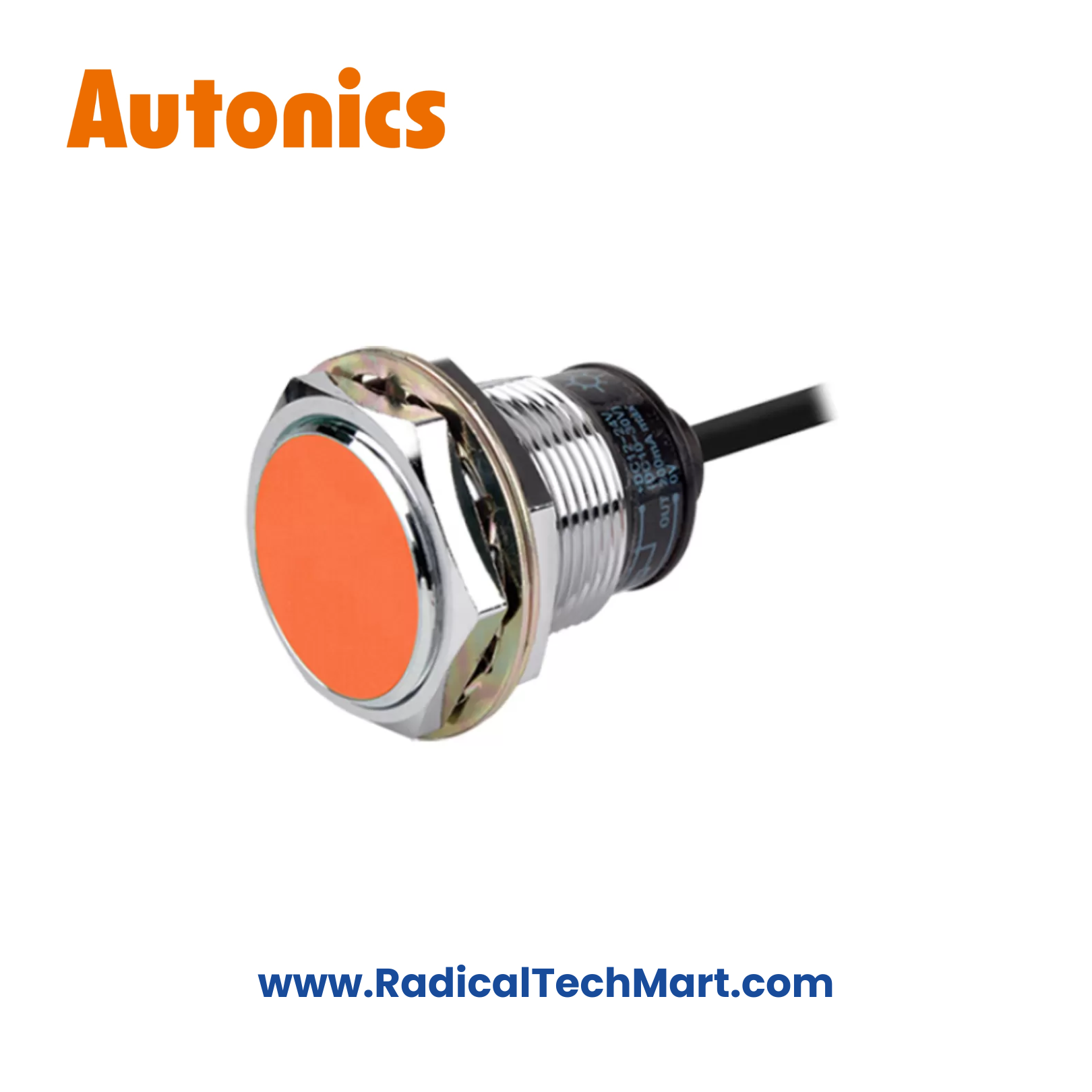

PR30-10DP Autonics Proximity Sensor
Autonics PR30-10DP Inductive Proximity Sensor – M30, 10 mm, PNP, DC 3-Wire
Autonics PR30-10DP is an M30 inductive proximity sensor with a 10 mm sensing distance and a PNP DC 3-wire output.
Ideal for long-range metal detection in PLC-based industrial automation and heavy-duty machinery.
The Autonics PR30-10DP is a heavy-duty inductive proximity sensor designed to detect metal objects only at a long sensing distance. Featuring a robust M30 threaded housing, 10 mm sensing distance (non-flush), and PNP DC 3-wire output, it is ideal for PLC-controlled machines, conveyors, and industrial automation systems requiring extended detection range.
Key Features
Detects metal objects only (inductive sensing)
Heavy-duty M30 cylindrical housing
10 mm sensing distance (non-flush / unshielded)
PNP, DC 3-wire output
Red LED operation indicator
Reverse polarity & short-circuit protection
Stable sensing with high repeatability
IP67 protection for harsh industrial environments
Technical Specifications
| Parameter | Value |
|---|---|
| Model | PR30-10DP |
| Sensor Type | Inductive Proximity Sensor |
| Housing Size | M30 |
| Installation | Non-Flush (Unshielded) |
| Sensing Distance | 10 mm |
| Setting Distance | 0 – 7 mm |
| Standard Target | Iron 30 × 30 × 1 mm |
| Output Type | PNP |
| Wiring | DC 3-Wire |
| Supply Voltage | 12–24 V DC (10–30 V DC operating) |
| Current Consumption | ≤ 10 mA |
| Control Output | Max. 200 mA |
| Response Frequency | Approx. 200 Hz |
| Indicator | Red LED |
| Protection Rating | IP67 |
| Ambient Temperature | −25 °C to +70 °C |
| Cable Length | 2 m |
| Body Material | Nickel-plated brass |
| Sensing Face | PBT |
Applications
PLC-based automation systems
Conveyors & material handling
Steel, cement & heavy machinery
Packaging & assembly lines
CNC & special-purpose machines
Position, limit & presence detection
What’s in the Box
1 × Autonics PR30-10DP Sensor
2 × Mounting nuts
1 × Washer
Instruction leaflet
FAQ
Q1. What material can PR30-10DP detect?
Only metal objects (inductive sensing).
Q2. What is the difference between PR30-10DP and PR30-10DN?
PR30-10DP has PNP output; PR30-10DN has NPN output.
Q3. Is this suitable for PLC inputs?
Yes. PNP DC 3-wire sensors are widely used with modern PLC digital inputs.
Q4. Can it be used in harsh industrial environments?
Yes. IP67 protection ensures reliable operation.
Q5. What is the sensing distance?
10 mm for a standard iron target.
