PRCM12-2AO Autonics Inductive Proximity Sensor

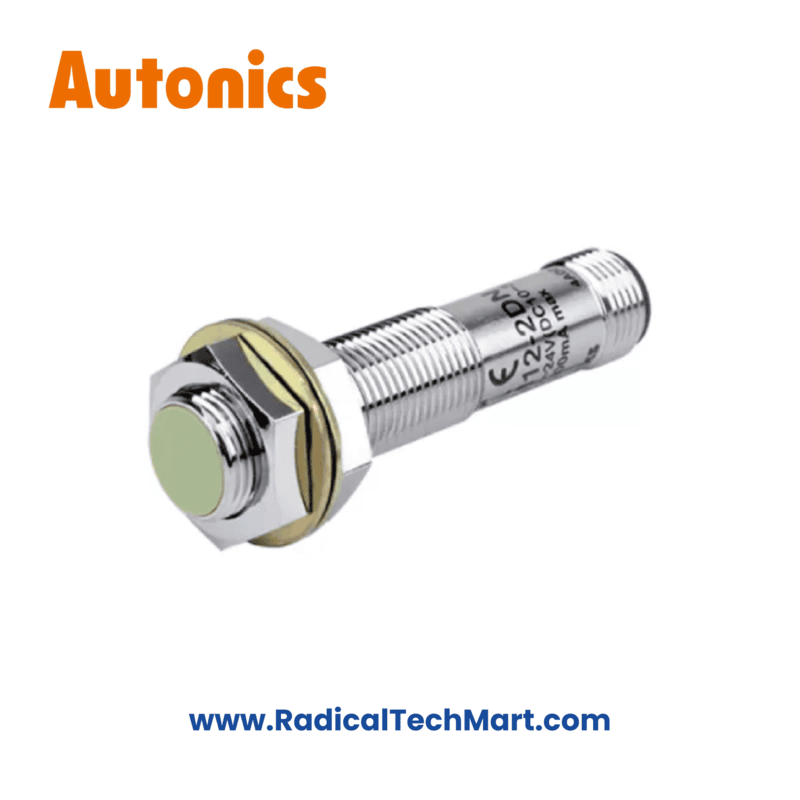

Autonics PRCM12-2AO Inductive Proximity Sensor – M12, 2 mm, AC 2-Wire, NO (Connector Type)
Autonics PRCM12-2AO is an M12 connector-type inductive proximity sensor with a 2 mm sensing distance and AC 2-wire normally open output.
Ideal for AC control circuits where quick sensor replacement and maintenance are required.
The Autonics PRCM12-2AO is a connector-type inductive proximity sensor designed for detecting metal objects only in AC-powered control circuits. With an M12 threaded housing, 2 mm sensing distance (flush), and AC 2-wire normally open output, it enables direct switching of AC loads such as relays and contactors while allowing quick replacement using standard M12 connector cables.
Key Features
Detects metal objects only (inductive sensing)
M12 connector-type design for easy replacement
2 mm sensing distance (flush / shielded)
AC 2-wire, Normally Open (NO) output
Direct AC load switching
Red LED operation indicator
Surge protection circuit
IP67 protection for industrial environments
Technical Specifications
| Parameter | Value |
|---|---|
| Model | PRCM12-2AO |
| Sensor Type | Inductive Proximity Sensor |
| Housing Size | M12 |
| Installation | Flush (Shielded) |
| Sensing Distance | 2 mm |
| Setting Distance | 0 – 1.4 mm |
| Standard Target | Iron 12 × 12 × 1 mm |
| Output Type | AC 2-Wire, Normally Open (NO) |
| Operating Voltage | 100–240 V AC, 50/60 Hz |
| Leakage Current | ≤ 2.2 mA |
| Load Current | 5–200 mA |
| Residual Voltage | ≤ 20 V |
| Response Frequency | Approx. 20 Hz |
| Connection Type | M12 Connector (4-pin) |
| Indicator | Red LED |
| Protection Rating | IP67 |
| Ambient Temperature | −25 °C to +70 °C |
| Body Material | Nickel-plated brass |
| Sensing Face | PBT |
Applications
AC relay & contactor control
Industrial control panels
Conveyor & material handling systems
Packaging & assembly machines
Applications requiring fast sensor replacement
Simple automation without PLC
What’s in the Box
1 × Autonics PRCM12-2AO Sensor
FAQ
Q1. What does “PRCM” indicate in the model?
It indicates a connector-type (M12) proximity sensor.
Q2. Is this sensor suitable for PLC inputs?
No. This is an AC 2-wire sensor, not for DC PLC inputs.
Q3. What type of load can it switch?
AC loads such as relays, contactors, and pilot lamps.
Q4. What material can it detect?
Only metal objects.
Q5. What is the advantage of the connector type?
Allows quick replacement without rewiring, reducing downtime.
